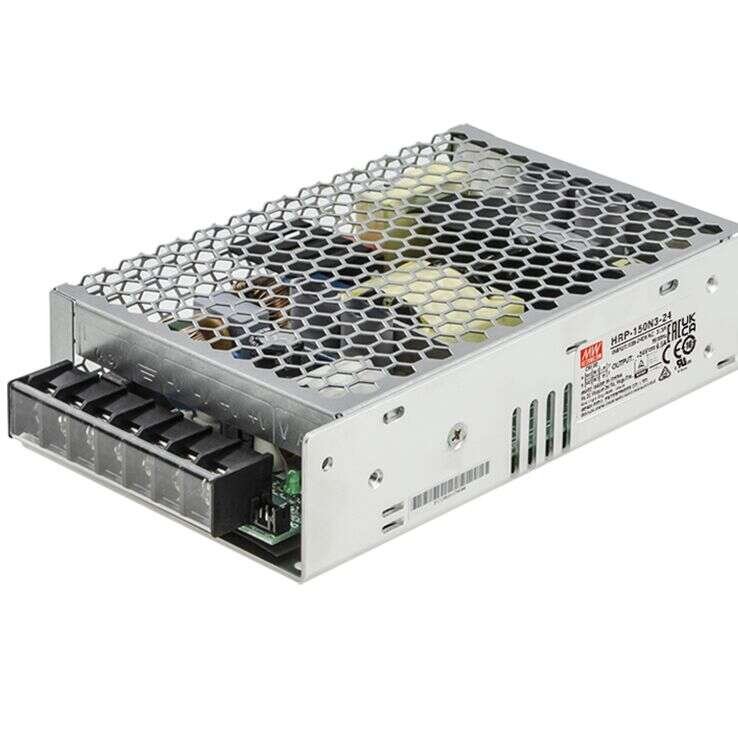

HRP-150N3 Series
Enclosed Power Supplies 154.8–158.4W
HRP-150N3 Series Main Features:
HRP-150N is a 150W single output type AC/DC power supply.
Models:
Manufacturer:
Type:
Other features:
HRP-150N3-12 / HRP-150N3-24
HRP-150N3-36 / HRP-150N3-48
MEAN WELL
Enclosed Power Supplies
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function, PF>0.95
250% peak power capability
High efficiency up to 89%
1U low profile 38mm
Cooling by free air convection
Built-in remote sense function
5 years warranty
Quote Request
| HRP-150N3-12 | HRP-150N3-24 | HRP-150N3-36 | HRP-150N3-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 156 | 156 | 154.8 | 158.4 | ||||||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||||||
| Output Current | 13A | 6.5A | 4.3A | 3.3A | ||||||||||||
| Output Voltage | 12V | 24V | 36V | 48V | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 10.2~13.8V | 21.6~28.8V | 28.8~39.6V | 40.8~55.2V | ||||||||||||
| Dimensions | 159x97x38 | 159x97x38 | 159x97x38 | 159x97x38 | ||||||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved | |||||||||||||||
| EMC Standards | EN55032, EN61000-3-2, EN61000-3-3 | |||||||||||||||
