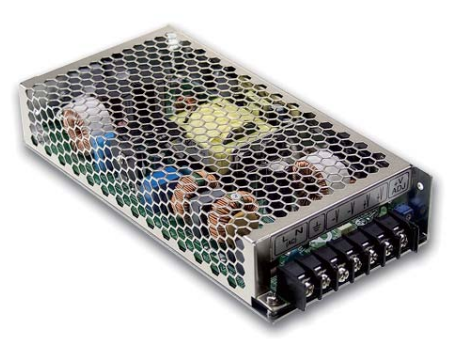

HRP-200 Series

Enclosed Power Supplies 200W

HRP-200

HRP-200 Series Main Features:

Built-in active PFC function, PF>0.95

1U low profile 38mm

Protections: Short circuit / Overload/ Over voltage/ Over Temperature

Models:

Manufacturer:

Type:

Other features:

HRP-200-3.3 / HRP-200-5
HRP-200-7.5 / HRP-200-12
HRP-200-15 / HRP-200-24
HRP-200-36 / HRP-200-48

MEAN WELL

Enclosed Power Supplies

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Built-in constant current limiting circuit

Cooling by free air convection

1U low profile 38mm

Built-in remote sense function

5 years warranty

Quote Request

    HRP-200-3.3HRP-200-5HRP-200-7.5HRP-200-12HRP-200-15HRP-200-24HRP-200-36HRP-200-48
    Wattage132175200.3200.4201201.6205.2206.4
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current0~40A0-35A0~26.7A0-16.7A0~13.4A0~8.4A0~5.7A0~4.3A
    Output Voltage3.3V5V7.5V12V15V24V36V48V
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment2.8~3.8V4.3~5.8V6.8~9V10.2~13.8V13.5~18V21.6~28.8V28.8~39.6V40.8~55.2V
    Dimensions199x98x38199x98x38199x98x38199x98x38199x98x38199x98x38199x98x38199x98x38
    Working Temperature-40-+70°C
    Satety StandardsUL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
