Home / AC-DC Enclosed Type / HRP-300

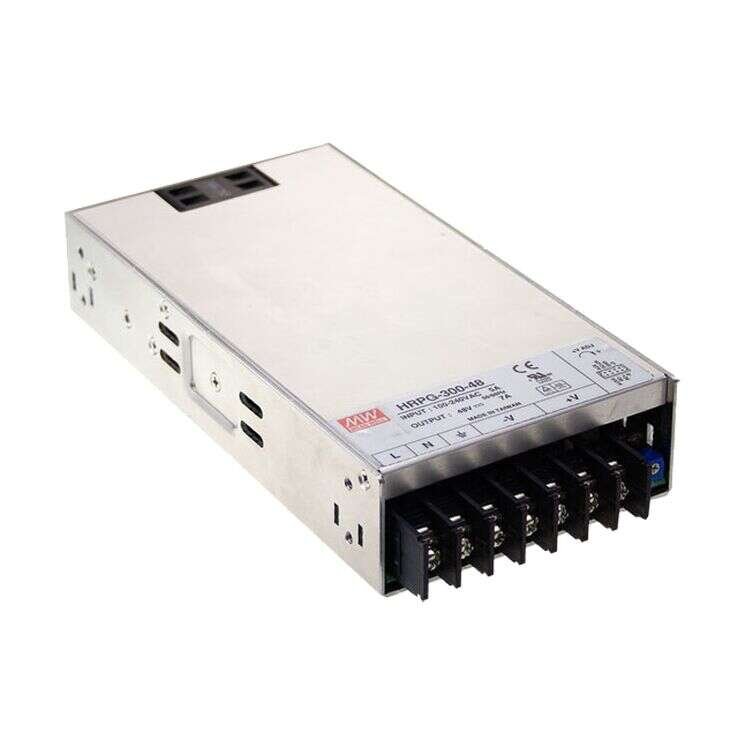

HRP-300 Series
Enclosed Power Supplies 300W
HRP-300 Series Main Features:
1U low profile
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
HRP-300-3.3 / HRP-300-5
HRP-300-7.5 / HRP-300-12
HRP-300-15 / HRP-300-24
HRP-300-36 / HRP-300-48
MEAN WELL
Enclosed Power Supplies
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in constant current limiting circuit
Built-in active PFC function
Built-in remote sense function
Built-in DC OK signal
Forced air cooling by built-in ~DC fan
100% full load burn-in test
5 years warranty
Quote Request
| HRP-300-3.3 | HRP-300-5 | HRP-300-7.5 | HRP-300-12 | HRP-300-15 | HRP-300-24 | HRP-300-36 | HRP-300-48 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | ||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||
| Output Current | 0~60A | 0~60A | 0~40A | 0~27A | 0~22A | 0~14A | 0~9A | 0-7A | ||||||||
| Output Voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V | ||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC Output Adjustment | 2.8~3.8V | 4.3~5.8V | 6.8~9V | 10.2~13.8V | 13.5~18V | 21.6~28.8V | 28.8~39.6V | 40.8~55.2V | ||||||||
| Dimensions | 199x105x41 | 199x105x41 | 199x105x41 | 199x105x41 | 199x105x41 | 199x105x41 | 199x105x41 | 199x105x41 | ||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV BS EN/EN62368-1, , AS/NZS 62368.1 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||||||||||||||
