Home / AC-DC Enclosed Type / HRP-300N3

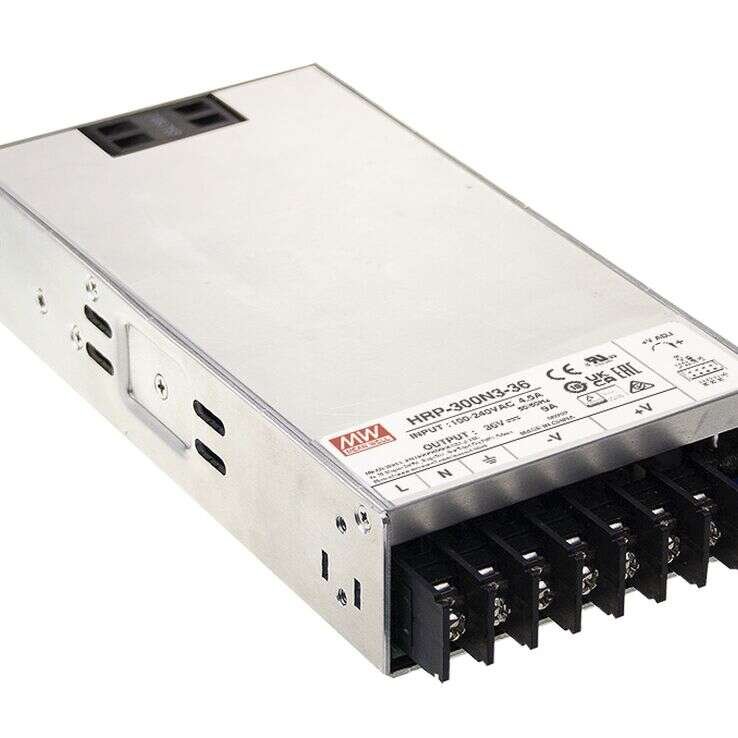

HRP-300N3 Series
Enclosed Power Supplies 324–336W
HRP-300N3 Series Main Features:
HRP-300N is a 300W single output type AC/DC power supply
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
HRP-300N3-12 / HRP-300N3-24
HRP-300N3-36 / HRP-300N3-48
MEAN WELL
Enclosed Power Supplies
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
250% peak power capability
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
High efficiency up to 89%
1U low profile 41mm
100% full load burn-in test
5 years warranty
Quote Request
| HRP-300N3-12 | HRP-300N3-24 | HRP-300N3-36 | HRP-300N3-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 324 | 336 | 324 | 336 | ||||||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||||||
| Output Current | 27A | 14A | 9A | 7A | ||||||||||||
| Output Voltage | 12V | 24V | 36V | 48V | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 10.2~13.8V | 21.6~28.8V | 28.8~39.6V | 40.8~55.2V | ||||||||||||
| Dimensions | 199x105x41 | 199x105x41 | 199x105x41 | 199x105x41 | ||||||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved | |||||||||||||||
| EMC Standards | EN55032, EN61000-3-2, EN61000-3-3 | |||||||||||||||
