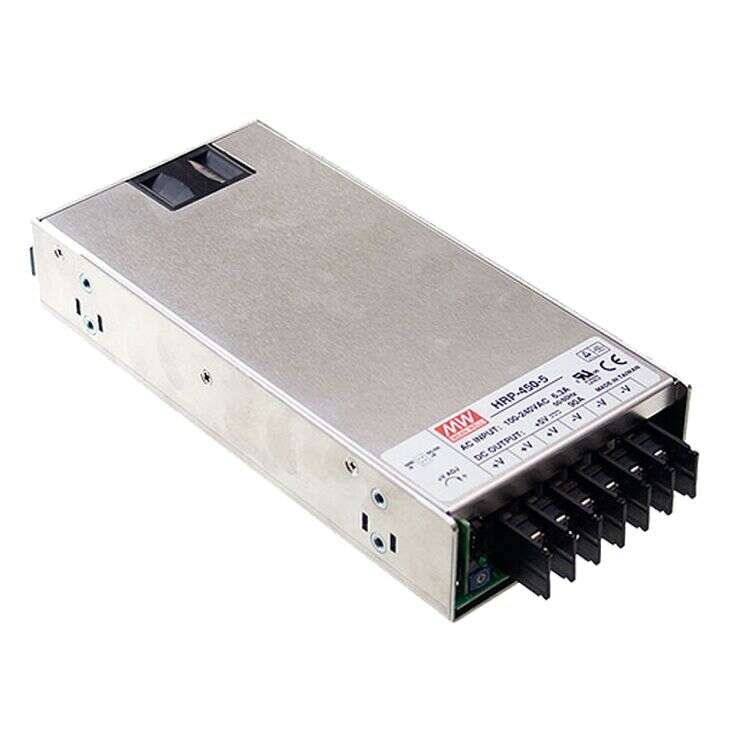

HRP-450 Series

Enclosed Power Supplies 450W

HRP-450

HRP-450 Series Main Features:

No Load power consumption <0.5W

Protections: Short circuit / Overload/ Over voltage/ Over Temperature

Models:

Manufacturer:

Type:

Other features:

HRP-450-3.3 / HRP-450-5
HRP-450-7.5 / HRP-450-12
HRP-450-15 / HRP-450-24
HRP-450-36 / HRP-450-48

MEAN WELL

Enclosed Power Supplies

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Built-in constant current limiting circuit

Built in remote ON/OFF control and 5V/
0.3A standby output

Built-in active PFC function

1U low profile

Forced air cooling by built-in ~DC fan

100% full load burn-in test

5 years warranty

Quote Request

    HRP-450-3.3HRP-450-5HRP-450-7.5HRP-450-12HRP-450-15HRP-450-24HRP-450-36HRP-450-48
    Wattage450450450450450450450450
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current0~90A0~90A0~60A0~37.5A0~30A0~18.8A0~12.5A0~9.5A
    Output Voltage3.3V5V7.5V12V15V24V36V48V
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment2.8~3.8V4.3~5.8V6.8~9V10.2~13.8V13.5~18V21.6~28.8V28.8~39.6V40.8~55.2V
    Dimensions218x105x41218x105x41218x105x41218x105x41218x105x41218x105x41218x105x41218x105x41
    Working Temperature-40-+70°C
    Satety StandardsUL60950-1, TUV EN60950-1 approved
    EMC StandardsEN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
