Home / AC-DC Enclosed Type / HRP-600

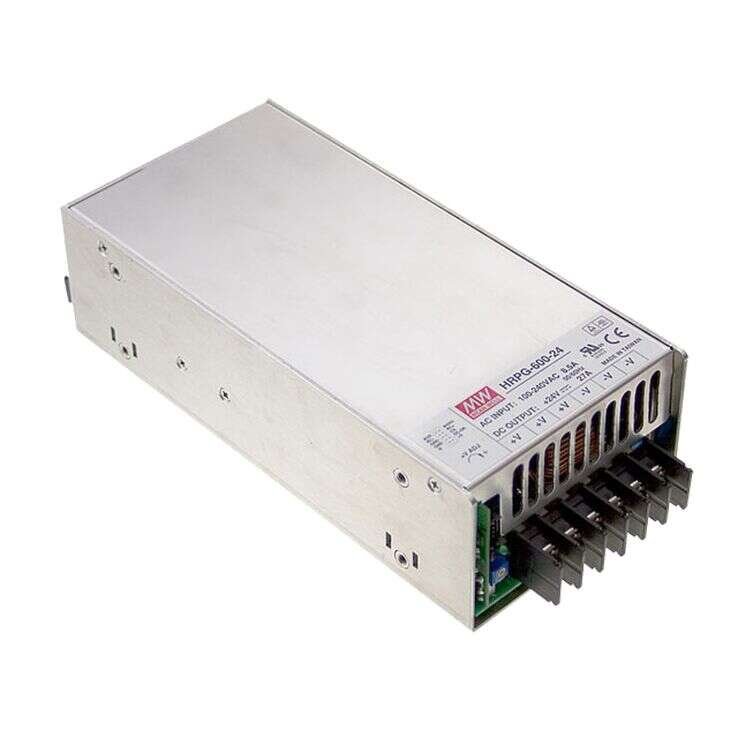

HRP-600 Series

Enclosed Power Supplies 600W

HRP-600

HRP-600 Series Main Features:

Universal AC input/ full range

Protections: Short circuit / Overload/ Over voltage/ Over Temperature

Models:

Manufacturer:

Type:

Other features:

HRP-600-3.3 / HRP-600-5
HRP-600-7.5 / HRP-600-12
HRP-600-15 / HRP-600-24
HRP-600-36 / HRP-600-48

MEAN WELL

Enclosed Power Supplies

Withstand 300VAC surge input for 5 seconds

Built-in constant current limiting circuit

Built-in remote sense function

Built-in active PFC function

Built-in DC OK signal

Forced air cooling by built-in ~DC fan

100% full load burn-in test

5 years warranty

Quote Request

    HRP-600-3.3HRP-600-5HRP-600-7.5HRP-600-12HRP-600-15HRP-600-24HRP-600-36HRP-600-48
    Wattage600600600600600600600600
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current0~120A0~120A0~80A0-53A0~43A0~27A0~17.5A0~13A
    Output Voltage3.3V5V7.5V12V15V24V36V48V
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment2.8~3.8V4.3~5.8V6.8~9V10.2~13.8V13.5~18V21.6~28.8V28.8~39.6V40.8~55.2V
    Dimensions218x105x63.5218x105x63.5218x105x63.5218x105x63.5218x105x63.5218x105x63.5218x105x63.5218x105x63.5
    Working Temperature-40-+70°C
    Satety StandardsUL60950-1, TUV EN60950-1 approved
    EMC StandardsEN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
