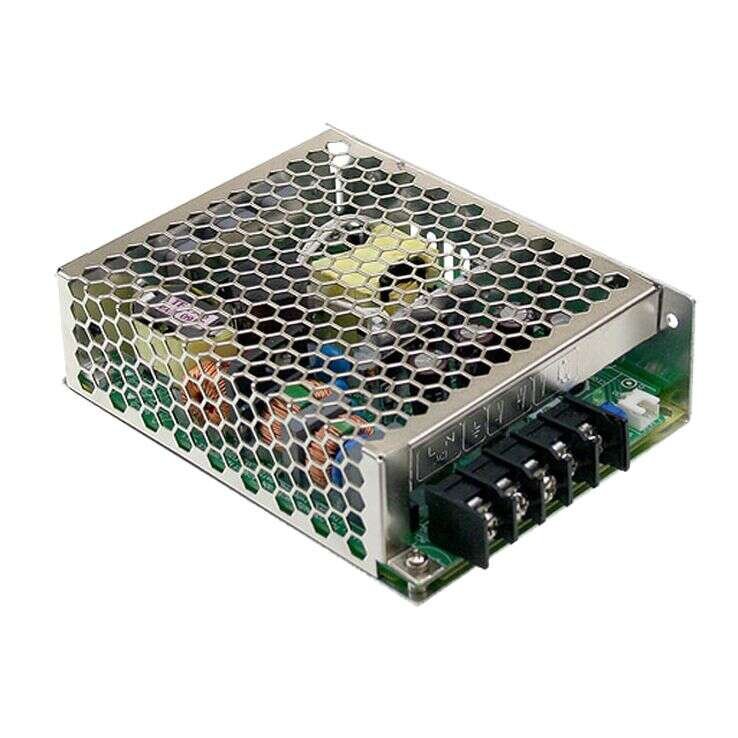

HRP-75 Series
Enclosed Power Supplies 75W
HRP-75 Series Main Features:
No Load power consumption <0.5W
Built-in active PFC function
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
HRP-75-3.3 / HRP-75-5
HRP-75-7.5 / HRP-75-12
HRP-75-15 / HRP-75-24
HRP-75-36 / HRP-75-48
MEAN WELL
Enclosed Power Supplies
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in constant current limiting circuit
Built in remote ON/OFF control
Cooling by free air
1U low profile
LED Indicator for power on
100% full load burn-in test
5 years warranty
Quote Request
| HRP-75-3.3 | HRP-75-5 | HRP-75-7.5 | HRP-75-12 | HRP-75-15 | HRP-75-24 | HRP-75-36 | HRP-75-48 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | ||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||
| Output Current | 0-15A | 0-15A | 0~10A | 0-6.3A | 0~5A | 0~3.2A | 0~3.2A | 0~3.2A | ||||||||
| Output Voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V | ||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC Output Adjustment | 3.1~3.8V | 4.7~5.8V | 7.1~9V | 11~13.8V | 14.2~18V | 21.6~28.8V | 32~39.6V | 45~55.2V | ||||||||
| Dimensions | 129x98x38 | 129x98x38 | 129x98x38 | 129x98x38 | 129x98x38 | 129x98x38 | 129x98x38 | 129x98x38 | ||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level | |||||||||||||||
