Home / AC-DC Enclosed Type / HRPG-1000

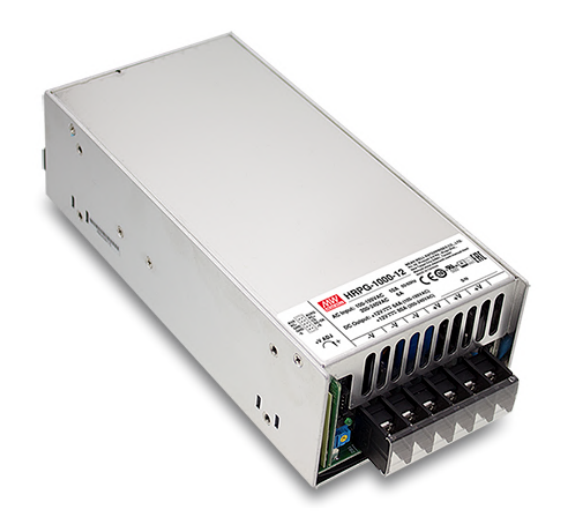

HRPG-1000 Series
Enclosed Power Supplies 1000W
HRPG-1000 Series Main Features:
Current sharing up to 4000W (3+1)
Built-in cooling fan ON-OFF control
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
HRPG-1000-12 / HRPG-1000-15
HRPG-1000-24 / HRPG-1000-36
MEAN WELL
Enclosed Power Supplies
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function, PF>0.95
High efficiency up to 94%
Standby 5V@0.3A
No load power consumption<0.75W
Built-in remote sense function
Built-in DC OK signal
5 years warranty
Quote Request
| HRPG-1000-12 | HRPG-1000-15 | HRPG-1000-24 | HRPG-1000-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 960 | 960 | 1008 | 1008 | ||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | ||||||||||||
| Output Current | 0~80A | 0~64A | 0~42A | 0-21A | ||||||||||||
| Output Voltage | 12V | 15V | 24V | 48V | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 11~14V | 14~17V | 22~28V | 46~56V | ||||||||||||
| Dimensions | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | ||||||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CAN/CSAC22.2 ,TUV EN62368-1, , EACTPTC 004 approved | |||||||||||||||
| EMC Standards | BS EN/ BS EN/ EN55035, EN61000-6-2 | |||||||||||||||
