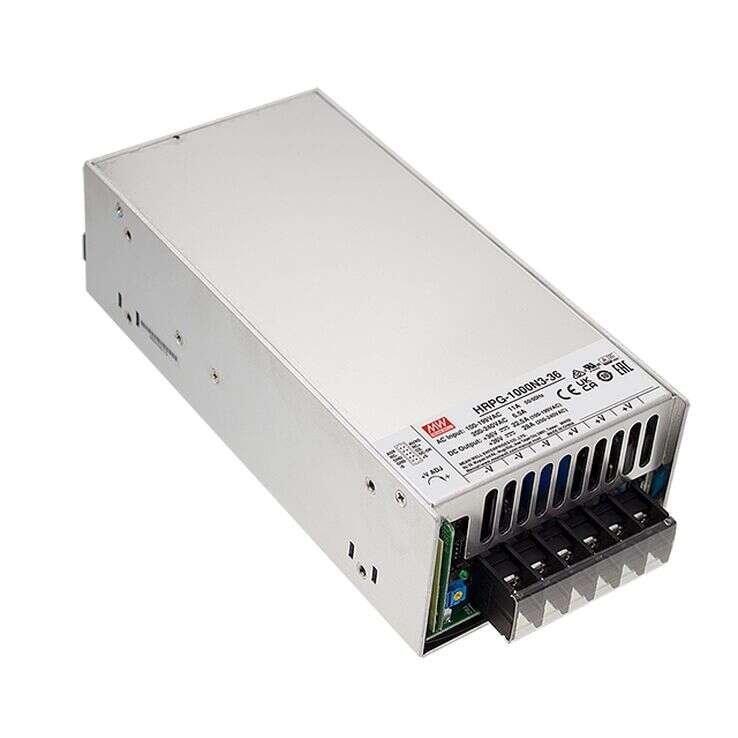

HRPG-1000N3 Series
Enclosed Power Supplies 1000W
HRPG-1000N3 Series Main Features:
HRPG-1000N3 series is a 1000W single output AC/DC with ultra-high peak power supply
Models:
Manufacturer:
Type:
Other features:
HRPG-1000N3-12 / HRPG-1000N3-24
HRPG-1000N3-36 / HRPG-1000N3-48
MEAN WELL
Enclosed Power Supplies
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function, PF>0.95
High efficiency up to 94%
Up to 320% peak power capability
Protections: Short circuit / Overload /
Over voltage / Over temperature
Built-in cooling fan ON-OFF control
5 years warranty
Quote Request
| HRPG-1000N3-12 | HRPG-1000N3-24 | HRPG-1000N3-36 | HRPG-1000N3-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1000 | 1000 | 1000 | 1000 | ||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | ||||||||||||
| Output Current | 80A | 42A | 28A | 21A | ||||||||||||
| Output Voltage | 12V | 24V | 36V | 48V | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| Dimensions | 218x105x61.5 | 218x105x61.5 | 218x105x61.5 | 218x105x61.5 | ||||||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CAN/CSA C22.2 , TUV EN62368-1, , EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032 (CISPR32) , BS EN/EN61000-3-2 , BS EN/EN61000-3-3, BS EN/EN55032 (CISPR32), BS EN/EN61000-3-2 , BS EN/EN61000-3-3 | |||||||||||||||
