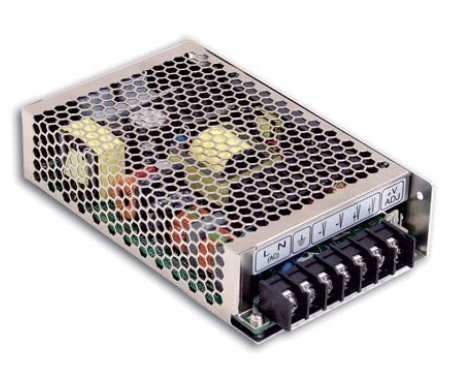

HRPG-150 Series

Enclosed Power Supplies 150W

HRPG-150

HRPG-150 Series Main Features:

No Load power consumption <0.5W

Built-in active PFC function, PF>0.95

Protections: Short circuit / Overload/ Over voltage/ Over Temperature

Models:

Manufacturer:

Type:

Other features:

HRPG-150-3.3 / HRPG-150-5
HRPG-150-7.5 / HRPG-150-12
HRPG-150-15 / HRPG-150-24
HRPG-150-36 / HRPG-150-48

MEAN WELL

Enclosed Power Supplies

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Built-in constant current limiting circuit

Built in remote ON/OFF control

Cooling by free air convection

1U low profile 38mm

Built-in remote sense function

No load power consumption<0.5W

5 years warranty

Quote Request

    HRPG-150-3.3HRPG-150-5HRPG-150-7.5HRPG-150-12HRPG-150-15HRPG-150-24HRPG-150-36HRPG-150-48
    Wattage99130150156150156154.8158.4
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current0~30A0-26A0~20A0-13A0~10A0~6.5A0~4.3A0~3.3A
    Output Voltage3.3V5V7.5V12V15V24V36V48V
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment2.8~3.8V4.3~5.8V6.8~9V10.2~13.8V13.5~18V21.6~28.8V28.8~39.6V40.8~55.2V
    Dimensions159x97x38159x97x38159x97x38159x97x38159x97x38159x97x38159x97x38159x97x38
    Working Temperature-40-+70°C
    Satety StandardsUL62368-1, TUV BS EN/EN62368-1, approved
    EMC StandardsCompliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN61000-6-2,heavy industry level,EAC TP TC 020
