Home / AC-DC Enclosed Type / HRPG-200

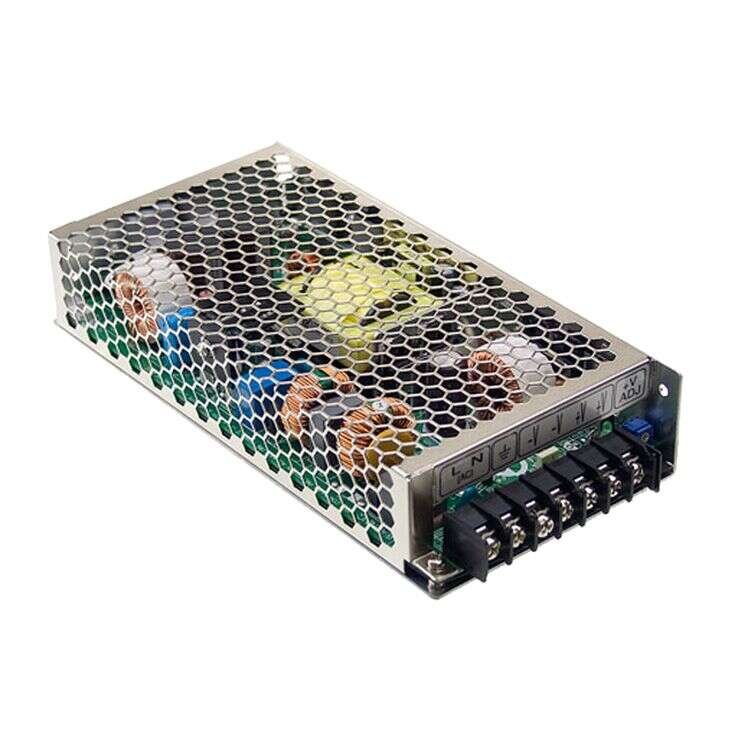

HRPG-200 Series

Enclosed Power Supplies 200W

HRPG-200

HRPG-200 Series Main Features:

No Load power consumption <0.5W

Protections: Short circuit / Overload/ Over voltage/ Over Temperature

Models:

Manufacturer:

Type:

Other features:

HRPG-200-3.3 / HRPG-200-5
HRPG-200-7.5 / HRPG-200-12
HRPG-200-15 / HRPG-200-24
HRPG-200-36 / HRPG-200-48

MEAN WELL

Enclosed Power Supplies

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Built-in constant current limiting circuit

Built in remote ON/OFF control

Built-in active PFC function

Built-in 5V / 0.3A standby output

Cooling by free air

1U low profile

LED Indicator for power on

100% full load burn-in test

5 years warranty

Quote Request

    HRPG-200-3.3HRPG-200-5HRPG-200-7.5HRPG-200-12HRPG-200-15HRPG-200-24HRPG-200-36HRPG-200-48
    Wattage200200200200200200200200
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current0~40A0~35A0~26.7A0~16.7A0~13.4A0~8.4A0~5.7A0~4.3A
    Output Voltage3.3V5V7.5V12V15V24V36V48V
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment2.8~3.8V4.3~5.8V6.8~9V10.2~13.8V13.5~18V21.6~28.8V28.8~39.6V40.8~55.2V
    Dimensions199x98x38199x98x38199x98x38199x98x38199x98x38199x98x38199x98x38199x98x38
    Working Temperature-40-+70°C
    Satety StandardsUL62368-1, TUV BS EN/EN62368-1, approved
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
