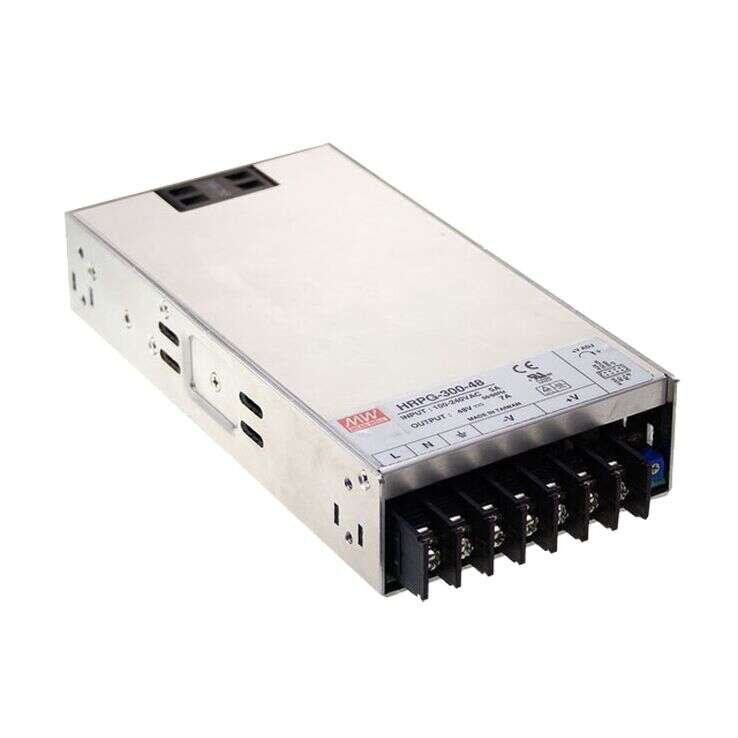

HRPG-300 Series

Enclosed Power Supplies 300W

HRPG-300

HRPG-300 Series Main Features:

No Load power consumption <0.5W

Protections: Short circuit / Overload/ Over voltage/ Over Temperature

Models:

Manufacturer:

Type:

Other features:

HRPG-300-3.3 / HRPG-300-5
HRPG-300-7.5 / HRPG-300-12
HRPG-300-15 / HRPG-300-24
HRPG-300-36 / HRPG-300-48

MEAN WELL

Enclosed Power Supplies

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Built-in constant current limiting circuit

Built-in remote sense function

Built-in DC OK signal

Forced air cooling by built-in ~DC fan

1U low profile

100% full load burn-in test

5 years warranty

Quote Request

    HRPG-300-3.3HRPG-300-5HRPG-300-7.5HRPG-300-12HRPG-300-15HRPG-300-24HRPG-300-36HRPG-300-48
    Wattage300300300300300300300300
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current0~60A0~60A0~40A0-27A0~22A0~14A0~9A0~7A
    Output Voltage3.3V5V7.5V12V15V24V36V48V
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment2.8~3.8V4.3~5.8V6.8~9V10.2~13.8V13.5~18V21.6~28.8V28.8~39.6V40.8~55.2V
    Dimensions199x105x41199x105x41199x105x41199x105x41199x105x41199x105x41199x105x41199x105x41
    Working Temperature-40-+70°C
    Satety StandardsUL62368-1, TUV BS EN/EN62368-1, approved
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
