Home / AC-DC Enclosed Type / HRPG-600

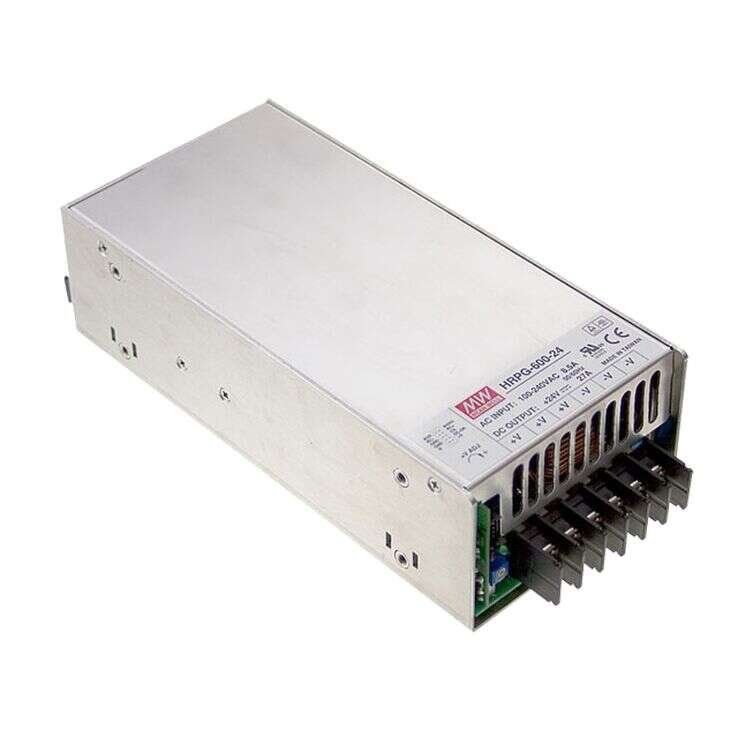

HRPG-600 Series
Enclosed Power Supplies 600W
HRPG-600 Series Main Features:
No Load power consumption <0.75W
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
HRPG-600-3.3 / HRPG-600-5
HRPG-600-7.5 / HRPG-600-12
HRPG-600-15 / HRPG-600-24
HRPG-600-36 / HRPG-600-48
MEAN WELL
Enclosed Power Supplies
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in constant current limiting circuit
Built-in active PFC function
Built in remote ON/OFF control& 5V /
0.3A standby output
Forced air cooling by built-in ~DC fan
Built-in remote sense function
Built-in DC OK signal
100% full load burn-in test
5 years warranty
Quote Request
| HRPG-600-3.3 | HRPG-600-5 | HRPG-600-7.5 | HRPG-600-12 | HRPG-600-15 | HRPG-600-24 | HRPG-600-36 | HRPG-600-48 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | ||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||
| Output Current | 0~120A | 0~80A | 0~80A | 0-53A | 0~43A | 0~27A | 0~17.5A | 0~13A | ||||||||
| Output Voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V | ||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC Output Adjustment | 2.8~3.8V | 4.3~5.8V | 6.8~9V | 10.2~13.8V | 13.5~18V | 21.6~28.8V | 28.8~39.6V | 40.8~55.2V | ||||||||
| Dimensions | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | ||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level | |||||||||||||||
