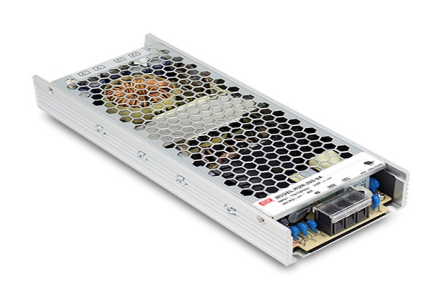

HSN-300 Series
300W Single Output Switching Power Supply
HSN-300 Series Main Features:
Cooling by free air convection
Low profile: 31mm
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
HSN-300-4.2A / HSN-300-4.2B
HSN-300-5A / HSN-300-5B
MEAN WELL
Enclosed Power Supplies
Low leakage current <1.0mA
Conformal coated
Low cost, high power reliability
100% full load burn-in test
LED Indicator for power on
3 years warranty
Quote Request
| HSN-300-4.2A | HSN-300-4.2B | HSN-300-5A | HSN-300-5B | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 210 | 252 | 250 | 300 | ||||||||||||
| Input Voltage | 90~132VAC | 180~264VAC 254~373VDC | 90~132VAC | 180~264VAC 254~373VDC | ||||||||||||
| Output Current | 0~50A | 0~60A | 0~50A | 0~60A | ||||||||||||
| Output Voltage | 4.2 | 4.2 | 5 | 5 | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 3.6-4.4V | 3.6-4.4V | 4.5-5.5V | 4.5-5.5V | ||||||||||||
| Dimensions | 210*81*31 | 210*81*31 | 210*81*31 | 210*81*31 | ||||||||||||
| Working Temperature | -20-+70°C | |||||||||||||||
| Satety Standards | UL60950-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Refer to EN61000-4-5; light industry level (surge 4KV), EAC TP TC 020 | |||||||||||||||
