Home / AC-DC Enclosed Type / HSP-300

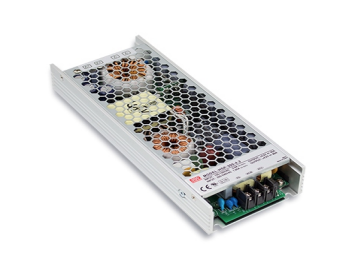

HSP-300 Series
300W Single Output with PFC Function
HSP-300 Series Main Features:
Low profile: 31mm
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
HSP-300-2.8 / HSP-300-4.2
HSP-300-5
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
Suitable for high efficiency moving sign applications
Built-in active PFC function
Universal AC input / Full range
Low leakage current <1.0mA
Conformal coated
LED Indicator for power on
3 years warranty
Quote Request
| HSP-300-2.8 | HSP-300-4.2 | HSP-300-5 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 168 | 252 | 300 | |||||||||||||
| Input Voltage | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | |||||||||||||
| Output Current | 60A | 60A | 60A | |||||||||||||
| Output Voltage | 2.8 | 4.2 | 5 | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 2.5-3V | 3.6-4.4V | 4.5-5.5V | |||||||||||||
| Dimensions | 210*81*31 | 210*81*31 | 210*81*31 | |||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL60950-1,IEC62368-1,GB 4943.1,EAC TP TC 004,TUV BS EN/EN 62368-1 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32),GB17625.1,GB/T 9254.1,Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||||||||||||||
