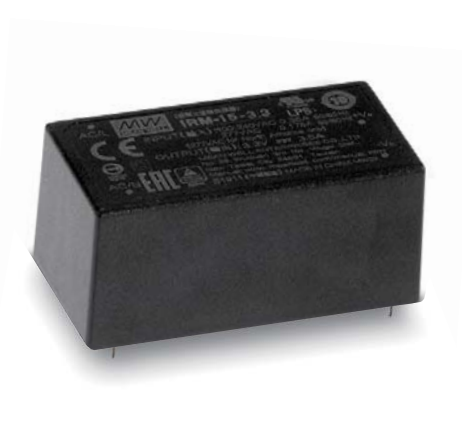

IRM-15 Series
Open Frame Power Supplies 12–15W
IRM-15 Series Main Features:
No load power consumption <0.1W
Compact size
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
IRM-15-3.3 / IRM-15-5
IRM-15-12 / IRM-15-15
IRM-15-24
MEAN WELL
Open Frame Power Supplies
Isolation class II
Cooling by free air convection
Universal AC input/ full range
High reliability
100% full load burn in test
3 years warranty
Quote Request
| IRM-15-3.3 | IRM-15-5 | IRM-15-12 | IRM-15-15 | IRM-15-24 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 12 | 15 | 15 | 15 | 15 | |||||||||||
| Input Voltage | 90~305VAC, 120~370VDC | 90~305VAC, 120~370VDC | 90~305VAC, 120~370VDC | 90~305VAC, 120~370VDC | 90~305VAC, 120~370VDC | |||||||||||
| Output Current | 0~3.5A | 0~3.0A | 0~1.25A | 0~1.0A | 0~0.63A | |||||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 52.4x27.2x24 | 52.4x27.2x24 | 52.4x27.2x24 | 52.4x27.2x24 | 52.4x27.2x24 | |||||||||||
| Working Temperature | -40~+85°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A | |||||||||||||||
