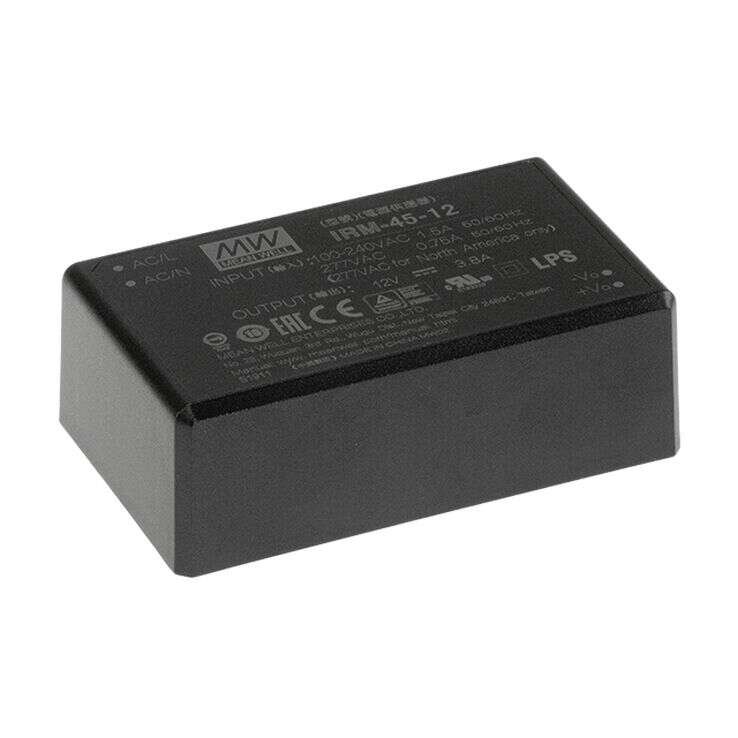

IRM-45 Series
Open Frame Power Supplies 40–45.6W
IRM-45 Series Main Features:
No load power consumption <0.1W
Compact size
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
IRM-45-5 / IRM-45-12
IRM-45-15 / IRM-45-24
IRM-45-48
MEAN WELL
Open Frame Power Supplies
Isolation class II
Cooling by free air convection
Universal AC input/ full range
High reliability
100% full load burn in test
Pass LPS (Except for 5V)
3 years warranty
Quote Request
| IRM-45-5 | IRM-45-12 | IRM-45-15 | IRM-45-24 | IRM-45-48 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 40 | 45.6 | 45 | 45.6 | 45.12 | |||||||||||
| Input Voltage | 90~305VAC, 120~370VDC | 90~305VAC, 120~370VDC | 90~305VAC, 120~370VDC | 90~305VAC, 120~370VDC | 90~305VAC, 120~370VDC | |||||||||||
| Output Current | 8A | 3.8A | 3A | 1.9A | 0.94A | |||||||||||
| Output Voltage | 5V | 12V | 15V | 24V | 48V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 87x52x29.5 | 87x52x29.5 | 87x52x29.5 | 87x52x29.5 | 87x52x29.5 | |||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class B , EN61000-3-2-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN55024, heavy industry level(surge L-N : 1KV), criteria A | |||||||||||||||
