Home / AC-DC Security&Specific Type / LAD-240

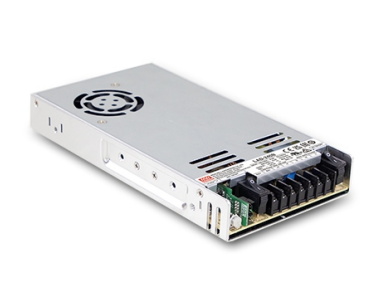

LAD-240 Series
Enclosed Power Supplies 239.87–242.88W
LAD-240 Series Main Features:
LAD-240 series is a 240W economical AC/DC low profile security power supply with UPS function
Models:
Manufacturer:
Type:
Other features:
LAD-240A / LAD-240B
LAD-240C / LAD-240D
MEAN WELL
Security&Specific Power Supplies
Built-in battery charger and UPS function
TTL signals for status detection: AC
OK, Battery disconnect, Battery reve
-rse polarity, Battery low, Battery full
and Discharge
Built-in AC and battery circuit ON/OFF
switch enhance safeness during maintenance
Forced UPS mode for battery mainte
-nance and improve battery life
-20~60C wide operating temperature
3 years warranty
Quote Request
| LAD-240A | LAD-240B | LAD-240C | LAD-240D | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 240.12 | 240.12 | 239.87 | 242.88 | ||||||||||||
| Input Voltage | 90-264VAC 240~370VDC | 90-264VAC 240~370VDC | 90-264VAC 240~370VDC | 90-264VAC 240~370VDC | ||||||||||||
| Output Current | 16.4A, 1A | 7.7A, 1A | 4.78A, 1A | 3.4A, 1A | ||||||||||||
| Output Voltage | 13.8V | 27.6V | 41.5V | 55.2V | ||||||||||||
| Dimensions | 215x115x30 | 215x115x30 | 215x115x30 | 215x115x30 | ||||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | UL62368-1, BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved; Design refer to GB 17945-2010 | |||||||||||||||
| EMC Standards | BS EN/EN55032 (CISPR32), EAC TP TC 020 | |||||||||||||||
