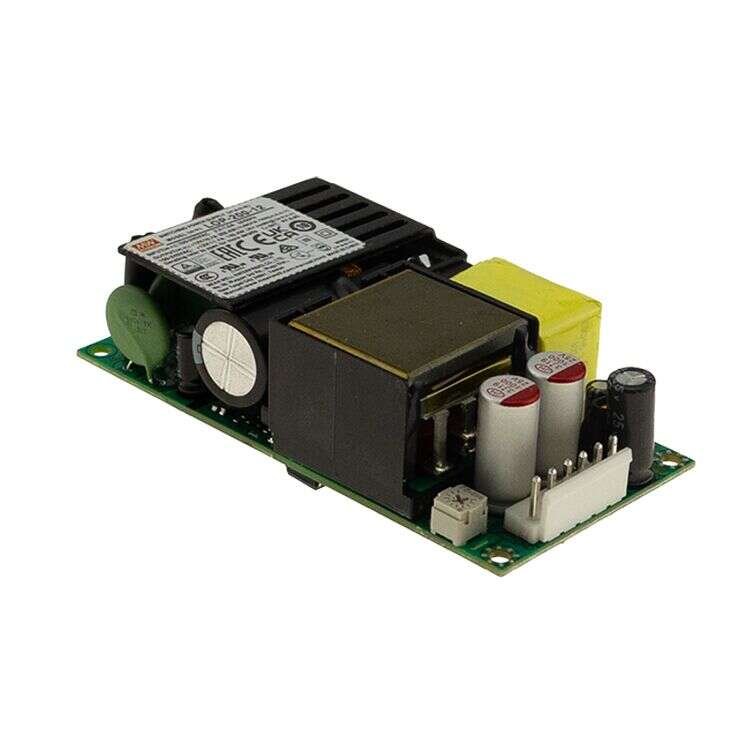

LOP-200 Series
Open Frame Power Supplies 200W
LOP-200 Series Main Features:
LOP-200 is a 200W highly reliable green PCB type low profile power supply with a high power density on the 4" by 2" footprint
Models:
Manufacturer:
Type:
Other features:
LOP-200-12 / LOP-200-15
LOP-200-18 / LOP-200-24
LOP-200-27 / LOP-200-36
LOP-200-48 / LOP-200-54
MEAN WELL
Open Frame Power Supplies
4" x 2" compact size with low profile (25.4mm)
80~264Vac input with PFC, No load
power consumption<0.5W
150% peak load @3s
140W convection, 200W with FAN 10.98
CFM forced-cooled
Suitable for Class I or Class II installations
-40 ~ +80C wide range operation temperature
3 years warranty
Quote Request
[wpforms id="1665" title="false"]
| LOP-200-12 | LOP-200-15 | LOP-200-18 | LOP-200-24 | LOP-200-27 | LOP-200-36 | LOP-200-48 | LOP-200-54 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||||||||
| Input Voltage | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | ||||||||
| Output Current | 16.7A | 13.4A | 11.1A | 8.4A | 7.5A | 5.6A | 4.2A | 3.8A | ||||||||
| Output Voltage | 11.4~12.6V | 14.3~15.8V | 17.1~18.9V | 22.8~25.2V | 25.6~ 29V | 34.2~37.8V | 45.6~50.4V | 52~58V | ||||||||
| Dimensions | 101.6x50.8x25.4 | 101.6x50.8x25.4 | 101.6x50.8x25.4 | 101.6x50.8x25.4 | 101.6x50.8x25.4 | 101.6x50.8x25.4 | 101.6x50.8x25.4 | 101.6x50.8x25.4 | ||||||||
| Working Temperature | -40~+80℃ | |||||||||||||||
| Satety Standards | CB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32) BS EN/EN55011(CISPR11) BS EN/EN55014(CISPR32) BS EN/EN61000-3-2 BS EN/EN61000-3-3 | |||||||||||||||
