LOP-300 Series

Open Frame Power Supplies 300W

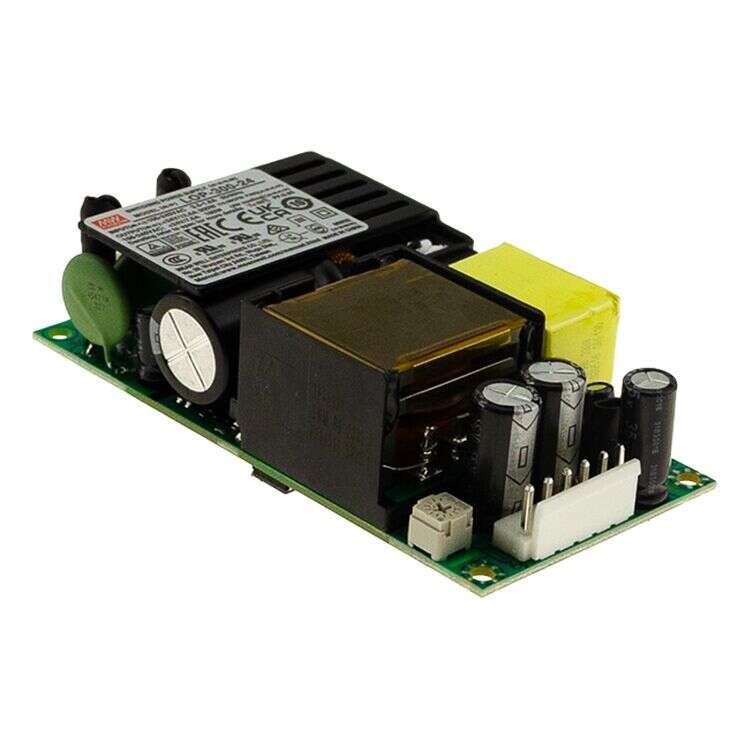

LOP-300

LOP-300 Series Main Features:

LOP-300 is a 300W highly reliable green PCB type low profile power supply with a high power density on the 4" by 2" footprint

Models:

Manufacturer:

Type:

Other features:

LOP-300-12 / LOP-300-15
LOP-300-18 / LOP-300-24
LOP-300-27 / LOP-300-30
LOP-300-36 / LOP-300-48
LOP-300-54

MEAN WELL

Open Frame Power Supplies

4" x 2" compact size with low profile (25.4mm)

80~264Vac input with PFC, No load
power consumption<0.5W

150% peak load @3s

180W convection, 300W with FAN 10.98
CFM forced-cooled

Suitable for Class I or Class II installations

-40 ~ +80C wide range operation temperature

3 years warranty

Quote Request

    LOP-300-12LOP-300-15LOP-300-18LOP-300-24LOP-300-27LOP-300-30LOP-300-36LOP-300-48LOP-300-54
    Wattage300300300300300300300300300
    Input Voltage80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC
    Output Current25A20A16.7A12.5A11.1A10A8.3A6.3A8.3A
    Output Voltage11.4~12.6V14.3~15.8V17.1~18.9V22.8~25.2V25.6~28.4V28.5~31.5V34.2~37.8V45.6~50.4V52~58V
    Dimensions101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4
    Working Temperature-40~+80℃
    Satety StandardsCB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 approved
    EMC StandardsBS EN/EN55032(CISPR32) BS EN/EN55011(CISPR11) BS EN/EN55014(CISPR32) BS EN/EN61000-3-2 BS EN/EN61000-3-3
