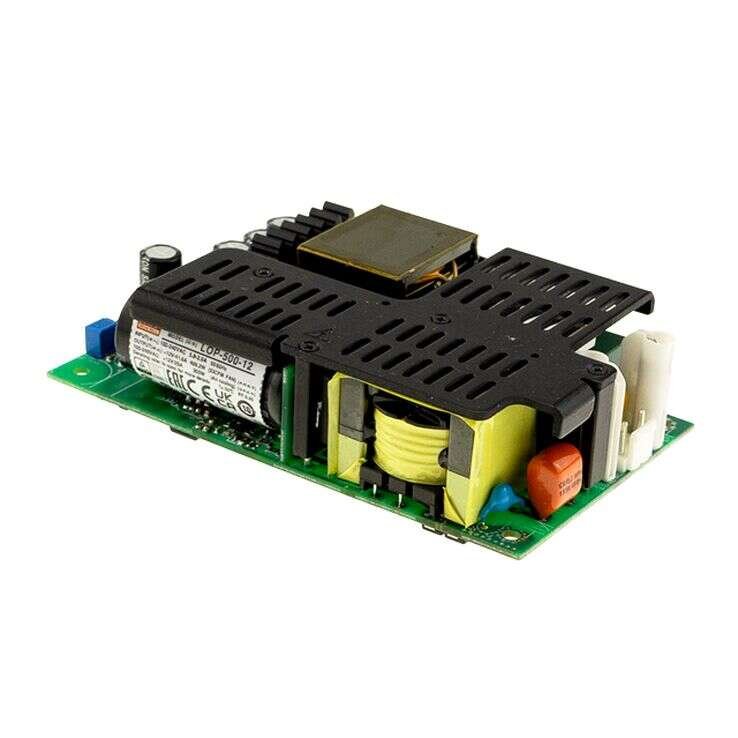

LOP-500 Series
Open Frame Power Supplies 500W
LOP-500 Series Main Features:
LOP-500 is a 500W highly reliable green PCB type low profile power supply with a high power density on the 5" by 3" footprint
Models:
Manufacturer:
Type:
Other features:
LOP-500-12 / LOP-500-15
LOP-500-18 / LOP-500-24
LOP-500-27 / LOP-500-36
LOP-500-48 / LOP-500-54
MEAN WELL
Open Frame Power Supplies
5" x 3" compact size with low profile (30.5mm)
80~264Vac input with PFC, No load
power consumption<0.5W
150% peak load @3s
320W convection, 500W with FAN 23
CFM forced-cooled
Suitable for Class I or Class II installations
-40 ~ +80C wide range operation temperature
3 years warranty
Quote Request
| LOP-500-12 | LOP-500-15 | LOP-500-18 | LOP-500-24 | LOP-500-27 | LOP-500-36 | LOP-500-48 | LOP-500-54 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | ||||||||
| Input Voltage | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | ||||||||
| Output Current | 41.6A | 33.3A | 27.8A | 20.9A | 18.5A | 13.9A | 10.4A | 9.3A | ||||||||
| Output Voltage | 11.4~12.6V | 14.3~15.8V | 17.1~18.9V | 22.8~25.2V | 25.6~28.4V | 34.2~37.8V | 45.6~50.4V | 52~58V | ||||||||
| Dimensions | 127x76.2x30.5 | 127x76.2x30.5 | 127x76.2x30.5 | 127x76.2x30.5 | 127x76.2x30.5 | 127x76.2x30.5 | 127x76.2x30.5 | 127x76.2x30.5 | ||||||||
| Working Temperature | -40~+80℃ | |||||||||||||||
| Satety Standards | CB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32) BS EN/EN55014(CISPR32) BS EN/EN61000-3-2 BS EN/EN61000-3-3 | |||||||||||||||
