LOP-600 Series

Open Frame Power Supplies 600W

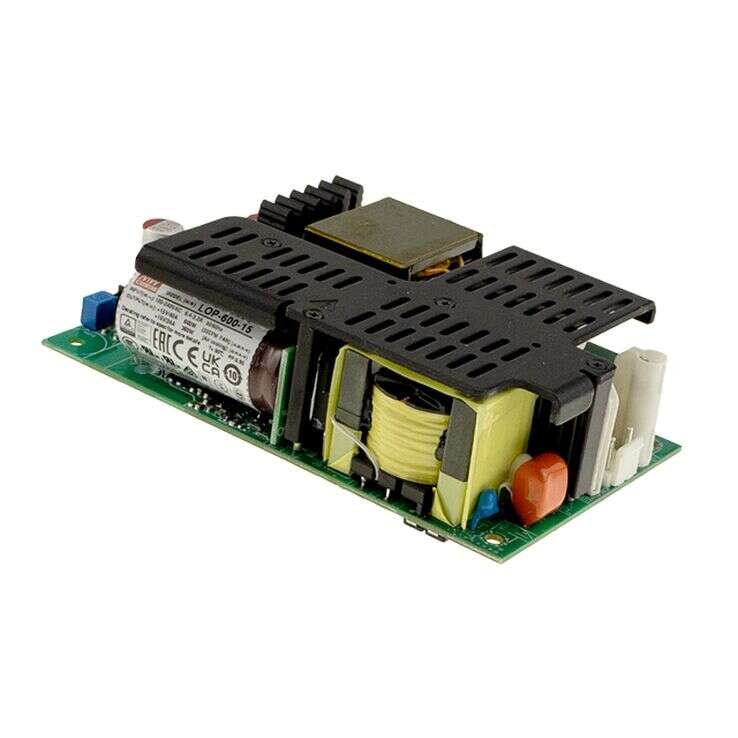

LOP-600

LOP-600 Series Main Features:

LOP-600 is a 600W highly reliable green PCB type low profile power supply with a high power density on the 5" by 3" footprint.

Models:

Manufacturer:

Type:

Other features:

LOP-600-12 / LOP-600-15
LOP-600-18 / LOP-600-24
LOP-600-27 / LOP-600-36
LOP-600-48 / LOP-600-54

MEAN WELL

Open Frame Power Supplies

5" x 3" compact size with low profile (12V: 35mm, 15~54: 33.5mm)

80~264Vac input with PFC, No load
power consumption<0.5W

150% peak load @3s

400W convection, 600W with FAN 23
CFM forced-cooled

Suitable for Class I or Class II installations

-40 ~ +80C wide range operation temperature

High efficiency up to 95%

Quote Request

    LOP-600-12LOP-600-15LOP-600-18LOP-600-24LOP-600-27LOP-600-36LOP-600-48LOP-600-54
    Wattage600600600600600600600600
    Input Voltage80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC
    Output Current50A40A33.3A25A22.3A16.7A12.5A11.2A
    Output Voltage11.4~12.6V14.3~15.8V17.1~18.9V22.8~25.2V25.6~28.4V34.2~37.8V45.6~50.4V52~58V
    Dimensions127x76.2x35127x76.2x35127x76.2x35127x76.2x35127x76.2x35127x76.2x35127x76.2x35127x76.2x35
    Working Temperature-40~+80℃
    Satety StandardsCB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 approved
    EMC StandardsBS EN/EN55032(CISPR32), BS EN/EN55014(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3
