Home / AC-DC Open Frame Type / LPP-150

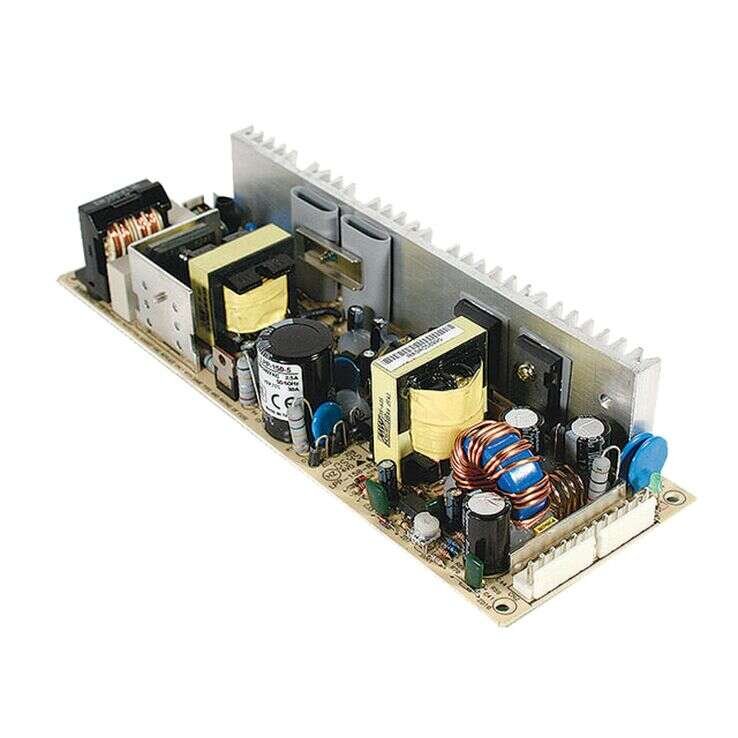

LPP-150 Series
Open Frame Power Supplies 150W
LPP-150 Series Main Features:
100% full load burn-in test
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
LPP-150-3.3 / LPP-150-5
LPP-150-7.5 / LPP-150-12
LPP-150-13.5 / LPP-150-15
LPP-150-24 / LPP-150-27
LPP-150-48
MEAN WELL
Open Frame Power Supplies
Universal AC Input / Full range
Cooling by free air convection
LED indicator for power on
3 years warranty
Quote Request
| LPP-150-3.3 | LPP-150-5 | LPP-150-7.5 | LPP-150-12 | LPP-150-13.5 | LPP-150-15 | LPP-150-24 | LPP-150-27 | LPP-150-48 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |||||||
| Input Voltage | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | |||||||
| Output Current | 0~30A | 0~30A | 0~20A | 0~12.5A | 0~11.2A | 0~10A | 0~6.3A | 0~5.6A | 0~3.2A | |||||||
| Output Voltage | 3.3V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V | |||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| DC Output Adjustment | 3.1~3.6V | 4.75~5.5V | 7.13~8.25V | 11.4~13.2V | 12.8~14.9V | 14.3~16.5V | 22.8~26.4V | 25.7~29.7V | 45.6~52.8V | |||||||
| Dimensions | 222x75x41 | 222x75x41 | 222x75x41 | 222x75x41 | 222x75x41 | 222x75x41 | 222x75x41 | 222x75x41 | 222x75x41 | |||||||
| Working Temperature | -20~+85°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV BS EN/EN62368-1 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||||||||||||||
