Home / AC-DC Open Frame Type / LPS-100

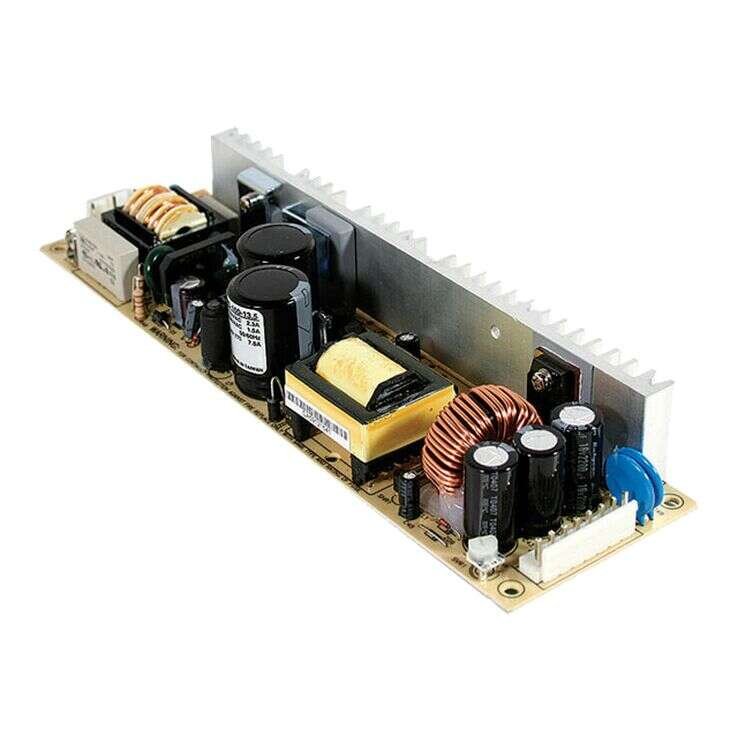

LPS-100 Series

Open Frame Power Supplies 100W

LPS-100

LPS-100 Series Main Features:

100% full load burn-in test

Protections: Short circuit / Overload / Over voltage

Models:

Manufacturer:

Type:

Other features:

LPS-100-3.3 / LPS-100-5
LPS-100-7.5 / LPS-100-12
LPS-100-13.5 / LPS-100-15
LPS-100-24 / LPS-100-27
LPS-100-48

MEAN WELL

Open Frame Power Supplies

Universal AC Input / Full range

Cooling by free air convection

Remote control function for CH1

2 years warranty

Quote Request

    LPS-100-3.3LPS-100-5LPS-100-7.5LPS-100-12LPS-100-13.5LPS-100-15LPS-100-24LPS-100-27LPS-100-48
    Wattage100100100100100100100100100
    Input Voltage88~264VAC 248~370VDC88~264VAC 248~370VDC88~264VAC 248~370VDC88~264VAC 248~370VDC88~264VAC 248~370VDC88~264VAC 248~370VDC88~264VAC 248~370VDC88~264VAC 248~370VDC88~264VAC 248~370VDC
    Output Current0~20A0~20A0~13.3A0~8.4A0~6.7A0~6.7A0~4.2A0~3.8A0~2.1A
    Output Voltage3.3V5V7.5V12V13.5V15V24V27V48V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment3~3.6V4.5~5.7V6~9V10~13.2V12~15V13.5~18V20~26.4V26~32V41~56V
    Dimensions222x62x32222x62x32222x62x32222x62x32222x62x32222x62x32222x62x32222x62x32222x62x32
    Working Temperature-20~+85°C
    Satety StandardsUL62368-1, TUV BS EN/EN62368-1 approved
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2(Note.7),-3, EAC TP TC 020
