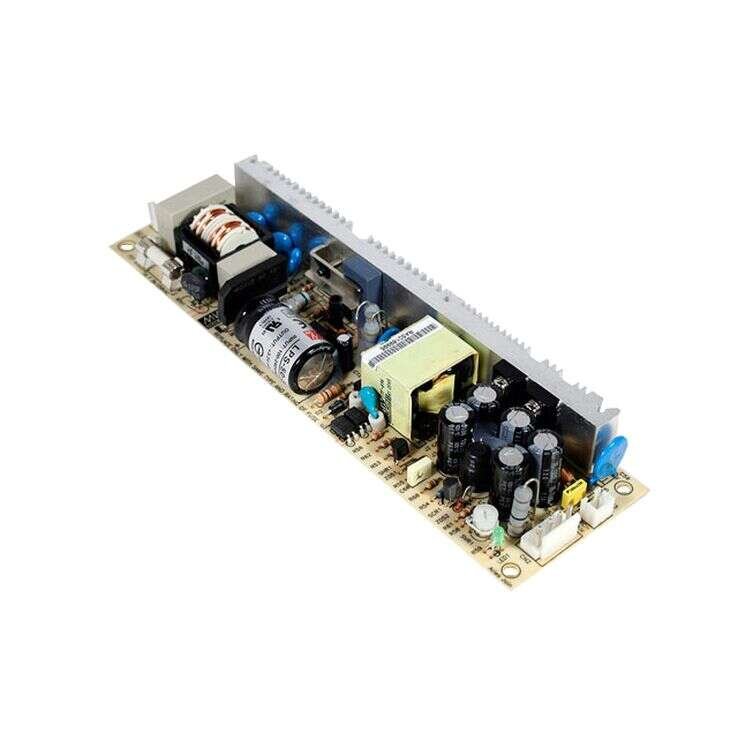

LPS-50 Series
Open Frame Power Supplies 50W
LPS-50 Series Main Features:
100% full load burn-in test
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
LPS-50-3.3 / LPS-50-5
LPS-50-12 / LPS-50-15
LPS-50-24 / LPS-50-48
MEAN WELL
Open Frame Power Supplies
Universal AC Input / Full range
Cooling by free air convection
Built-in remote ON/OFF control
Remote control function for CH1
2 years warranty
Quote Request
| LPS-50-3.3 | LPS-50-5 | LPS-50-12 | LPS-50-15 | LPS-50-24 | LPS-50-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 50 | 50 | 50 | 50 | 50 | 50 | ||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||
| Output Current | 0~10A | 0~10A | 0~4.2A | 0~3.4A | 0~2.1A | 0~1.1A | ||||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | 48V | ||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 3~3.6V | 4.5~5.5V | 10.8~13.2V | 13.5~16.5V | 21.6~27.2V | 43.2~52.8V | ||||||||||
| Dimensions | 195x55x23 | 195x55x23 | 195x55x23 | 195x55x23 | 195x55x23 | 195x55x23 | ||||||||||
| Working Temperature | -20~+85°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV BS EN/EN62368-1 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||||||||||||||
