Home / AC-DC Open Frame Type / LPS-75

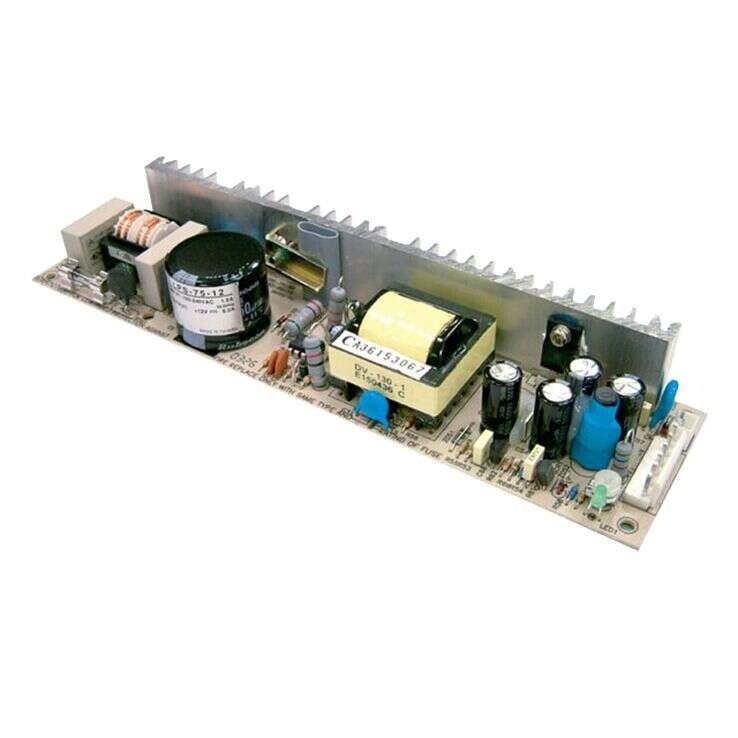

LPS-75 Series
Open Frame Power Supplies 75W
LPS-75 Series Main Features:
100% full load burn-in test
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
LPS-75-3.3 / LPS-75-5
LPS-75-12 / LPS-75-15
LPS-75-24 / LPS-75-48
MEAN WELL
Open Frame Power Supplies
Universal AC Input / Full range
Cooling by free air convection
Built-in remote ON/OFF control
Remote control function for CH1
2 years warranty
Quote Request
| LPS-75-3.3 | LPS-75-5 | LPS-75-12 | LPS-75-15 | LPS-75-24 | LPS-75-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 75 | 75 | 75 | 75 | 75 | 75 | ||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | ||||||||||
| Output Current | 0~15A | 0~15A | 0~6.2A | 0~5.0A | 0~3.2A | 0~1.56A | ||||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | 48V | ||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 3~3.5V | 4.75~5.5V | 11~13.5V | 13.5~16.5V | 22~27V | 45~54V | ||||||||||
| Dimensions | 222x55x30 | 222x55x30 | 222x55x30 | 222x55x30 | 222x55x30 | 222x55x30 | ||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level | |||||||||||||||
