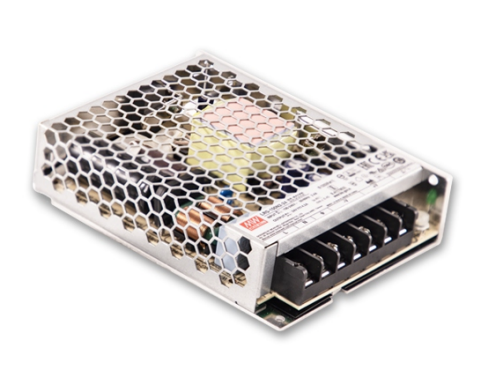

LRS-100N2 Series
Enclosed Power Supplies 100.8–102W
LRS-100N2 Series Main Features:
Cooling by free air convection
Miniature size and 1U low profile
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
LRS-100N2-12 / LRS-100N2-24
LRS-100N2-36 / LRS-100N2-48
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for
5 seconds
Withstand 5G vibration test
LED indicator for power on
High operating temperature up to 70℃
Operating altitude up to 4000 meter
Over voltage category III
Up to 200% peak power capability
3 years warranty
Quote Request
| LRS-100N2-12 | LRS-100N2-24 | LRS-100N2-36 | LRS-100N2-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 102 | 100.8 | 100.8 | 100.8 | ||||||||||||
| Input Voltage | 85-264VAC 120-373VDC | 85-264VAC 120-373VDC | 85-264VAC 120-373VDC | 85-264VAC 120-373VDC | ||||||||||||
| Output Current | 8.5A | 4.2A | 2.8A | 2.1A | ||||||||||||
| Output Voltage | 12 | 24 | 36 | 48 | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 10.2-13.8V | 21.6-28.8V | 32.4-39.6V | 43.2-52.8V | ||||||||||||
| Dimensions | 129*97*30 | 129*97*30 | 129*97*30 | 129*97*30 | ||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16,GB 4943.1,BSMI CNS15598-1, EAC TP TC 004,S/NZS62368.1(by CB), BIS IS13252(Part1): 2010/IEC 60950-1: 2005(except for 48V) approved Designed refer to AS/NZS 61558.1/2.16, AS/NZS 62368.1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2 Class A(≤80% Load), BS EN/EN61000-3-3, BSMI CNS15936, EAC TP TC 020 | |||||||||||||||
