LRS-1200 Series

Enclosed Power Supplies 1104–1200W

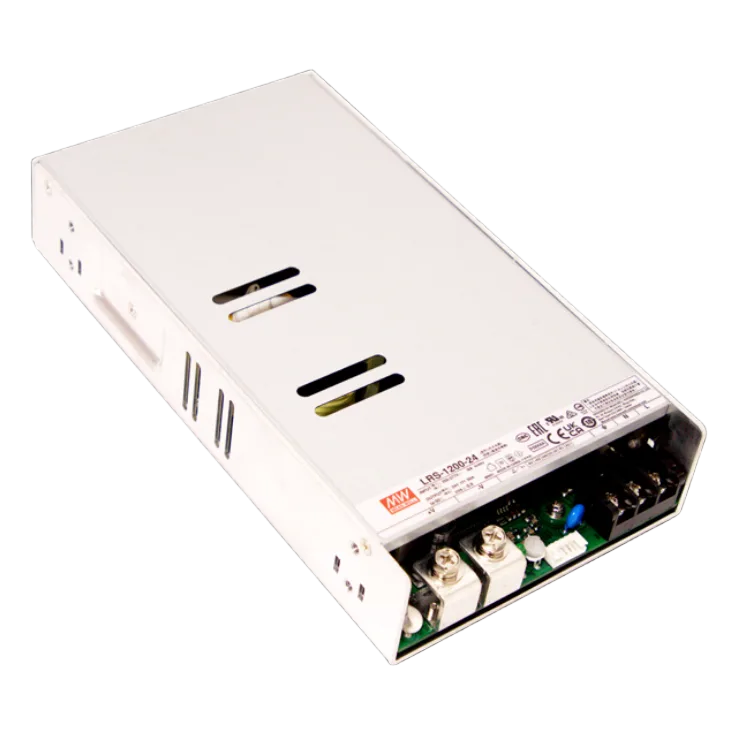

LRS-1200

LRS-1200 Series Main Features:

AC input 180~305Vac input

Global certificates in multi-fields

Compact size with low profile(17W/inch³)

Models:

Manufacturer:

Type:

Other features:

LRS-1200-12 / LRS-1200-24
LRS-1200-36 / LRS-1200-48

MEAN WELL

Enclosed Power Supplies

150% peak power @5s

High effciency up to 94%

Built-in constant current limiting circuit

Protections: Short circuit / Overload /
Over voltage / Over temperature

Forced air cooling,cooling fan speed control

Built-in DC OK/Remote Control/Remote Sense

-30~+70℃ wide range operation temperature

Quote Request

    LRS-1200-12LRS-1200-24LRS-1200-36LRS-1200-48
    Wattage110412001198.81200
    Input Voltage180-305VAC
    255-431VDC    		180-305VAC
    255-431VDC    		180-305VAC
    255-431VDC    		180-305VAC
    255-431VDC
    Output Current92A50A33.3A25A
    Output Voltage12243648
    Output Voltage OptionSingleSingleSingleSingle
    Output Adjustment12~15V24~28V34~40V48-56V
    Dimensions(mm)225x124x41225x124x41225x124x41225x124x41
    Working Temperature-30-+70℃
    EMC StandardsBS EN/EN61000-4-2; BS EN/EN61000-4-3; BS EN/EN61000-4-4; BS EN/EN61000-4-5; BS EN/EN61000-4-6; BS EN/EN61000-4-8; BS EN/EN61000-4-11
    Safety StandardsCB IEC62368-1,IEC61558-1/-2-16 UL UL62368-1 DEKRA BS EN/EN62368-1,BS EN/EN61558-1/-2-16 RCM AS/NZS 62368-1,AS/NZS 61558-1/-2-16 CQC GB 4943.1 BSMI CNS15598-1 EAC TPTC 004 approved KC/BIS KC62368-1 and BIS IS 13252(Part 1) :2010 certified, no stock by request, contact sale for inquires
