LRS-150 Series

Enclosed Power Supplies 150–158.4W

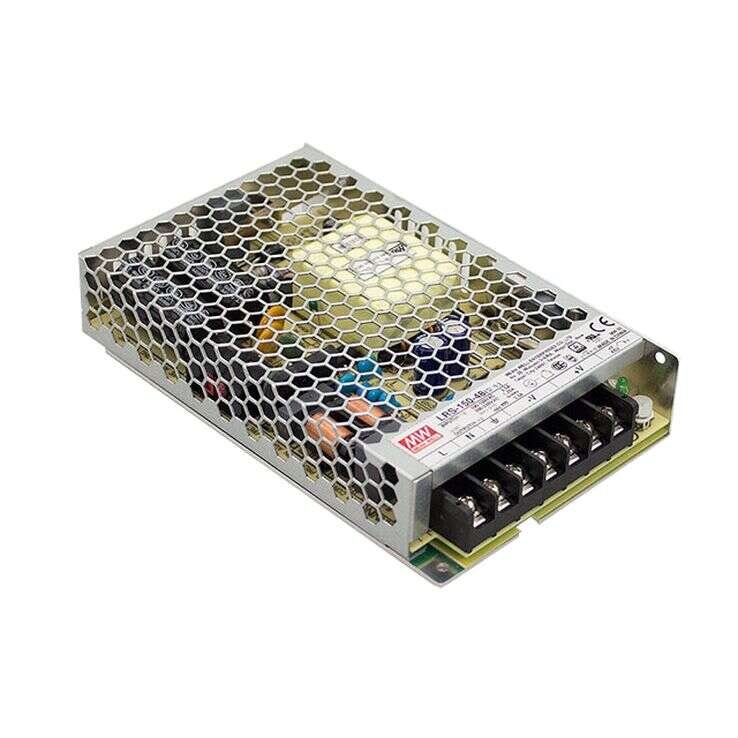

LRS-150

LRS-150 Series Main Features:

No Load power consumption <0.2W

Miniature size and 1U low profile

Protections: Short circuit/ Overload/ Over voltage

Models:

Manufacturer:

Type:

Other features:

LRS-150-12 / LRS-150-15
LRS-150-24 / LRS-150-36
LRS-150-48

MEAN WELL

Enclosed Power Supplies

Universal AC Input/ Full range

Withstand 300VAC surge input for 5 second

No load power consumption <0.2W

High operating temperature up to 70°C

Cooling by free air convection

Compliance to IEC/EN 60335-1 (PD3)
and IEC/EN61558-1, -2-16 for
household appliances

Operating altitude up to 5000 meters

Withstand 5G vibration test

High efficiency, Long life and high reliability

LED indicatior for power on

Quote Request

    LRS-150-12LRS-150-15LRS-150-24LRS-150-36LRS-150-48
    Wattage150150156154.8158.4
    Input Voltage85~264 VAC, 120~373 VDC85~264 VAC, 120~373 VDC85~264 VAC, 120~373 VDC85~264 VAC, 120~373 VDC85~264 VAC, 120~373 VDC
    Output Current0~12.5A0~10A0~6.5A0~4.3A0~3.3A
    Output Voltage1215243648
    Output Voltage OptionSingleSingleSingleSingleSingle
    DC Output Adjustment10.2~13.8V13.5~18V21.6~28.8V32.4~39.6V43.2~52.8V
    Dimensions159 x 97 x 30159 x 97 x 30159 x 97 x 30159 x 97 x 30159 x 97 x 30
    Working Temperature-30-+70°C
    Satety StandardsUL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943 Approved
    EMC StandardsEN55022, GB9254 Class B, EN55014, EN61000-3-2,-3, EN61000-4-2,-3,4,5,6,8,11, EN61000-6-2 (EN50082-2), Heavy Industry level, Criteria A
