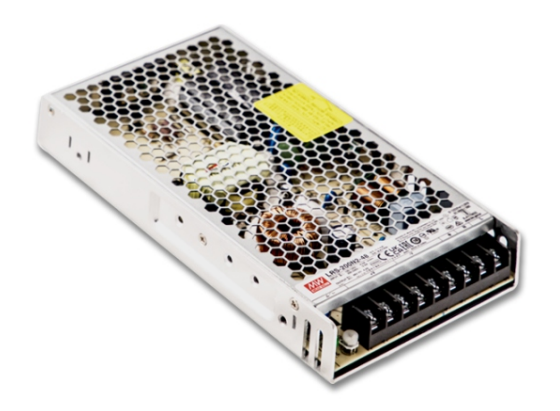

LRS-200N2 Series
Enclosed Power Supplies 204–212.4W
LRS-200N2 Series Main Features:
Cooling by free air convection
High efficiency, long life and high reliability
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
LRS-200N2-12 / LRS-200N2-24
LRS-200N2-36 / LRS-200N2-48
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for 5 seconds
Withstand 5G vibration test
LED indicator for power on
High operating temperature up to 70℃
Operating altitude up to 2000 meter
Over voltage category III
No load power consumption<1W
Compliance to IEC/BS EN/EN61558-1
and 62368-1
Up to 200% peak power capability
3 years warranty
Quote Request
| LRS-200N2-12 | LRS-200N2-24 | LRS-200N2-36 | LRS-200N2-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 204 | 211.2 | 212.4 | 211.2 | ||||||||||||
| Input Voltage | 90-264VAC 240-370VDC | 90-264VAC 240-370VDC | 90-264VAC 240-370VDC | 90-264VAC 240-370VDC | ||||||||||||
| Output Current | 17A | 8.8A | 5.9A | 4.4A | ||||||||||||
| Output Voltage | 12 | 24 | 36 | 48 | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 10.2-13.8V | 21.6-28.8V | 32.4-39.6V | 43.2-52.8V | ||||||||||||
| Dimensions | 215*115*30 | 215*115*30 | 215*115*30 | 215*115*30 | ||||||||||||
| Working Temperature | -25-+70℃C | |||||||||||||||
| Satety Standards | IEC/UL 62368-1, BSMI CNS15598-1,EAC TP TC 004,BIS IS13252(Part1): 2010/IEC 60950-1: 2005(except for 48V); GB 4943.1, BS EN/EN61558-1, BS EN61558-2-16; Designed by BS/EN/EN62368-1, AS/NZS 61558.1/2.16, AS/NZS 62368.1 | |||||||||||||||
| EMC Standards | Compliance to BSMI CNS15936, EAC TP TC 020 | |||||||||||||||
