Home / AC-DC Enclosed Type / LRS-50

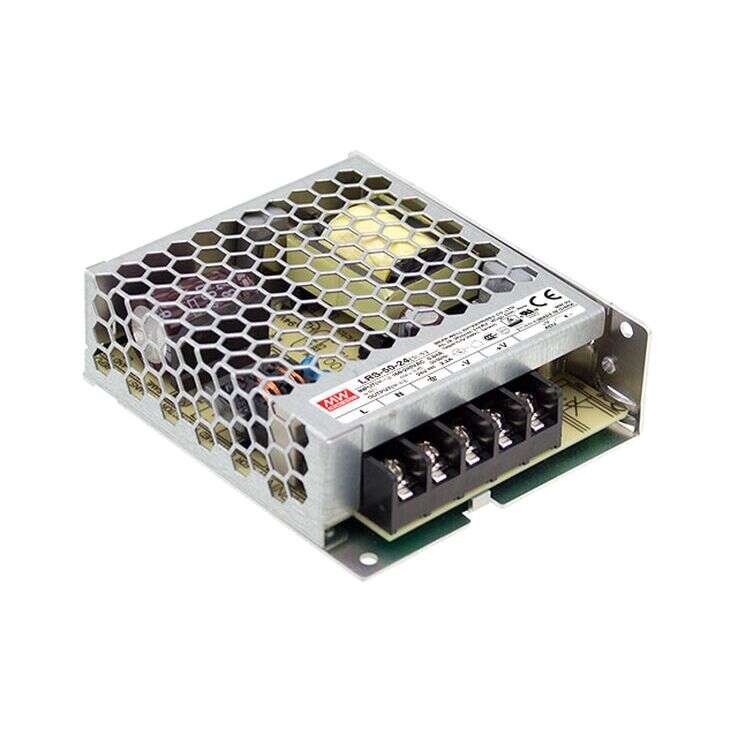

LRS-50 Series
Enclosed Power Supplies 33–52.8W
LRS-50 Series Main Features:
No Load power consumption <0.2W
Miniature size and 1U low profile
Protections: Short circuit/ Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
LRS-50-3.3 / LRS-50-5
LRS-50-12 / LRS-50-15
LRS-50-24 / LRS-50-36
LRS-50-48
MEAN WELL
Enclosed Power Supplies
Universal AC Input/ Full range
Withstand 300VAC surge input for 5 second
No load power consumption <0.2W
High operating temperature up to 70°C
Cooling by free air convection
Compliance to IEC/EN 60335-1 (PD3)
and IEC/EN61558-1, -2-16 for
household appliances
Operating altitude up to 5000 meters
Withstand 5G vibration test
Quote Request
| LRS-50-3.3 | LRS-50-5 | LRS-50-12 | LRS-50-15 | LRS-50-24 | LRS-50-36 | LRS-50-48 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 33 | 50 | 50 | 51 | 52.8 | 52.2 | 52.8 | |||||||||
| Input Voltage | 85~264 VAC, 120~373 VDC | 85~264 VAC, 120~373 VDC | 85~264 VAC, 120~373 VDC | 85~264 VAC, 120~373 VDC | 85~264 VAC, 120~373 VDC | 85~264 VAC, 120~373 VDC | 85~264 VAC, 120~373 VDC | |||||||||
| Output Current | 0~10A | 0~10A | 0~4.2A | 0~3.4A | 0~2.2A | 0~1.45A | 0~1.1A | |||||||||
| Output Voltage | 3.3 | 5 | 12 | 15 | 24 | 36 | 48 | |||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | |||||||||
| DC Output Adjustment | 2.97~3.6V | 4.5~5.5V | 10.2~13.8V | 13.5~18V | 21.6~28.8V | 32.4~39.6V | 43.2~52.8V | |||||||||
| Dimensions | 99 x 82 x 30 | 99 x 82 x 30 | 99 x 82 x 30 | 99 x 82 x 30 | 99 x 82 x 30 | 99 x 82 x 30 | 99 x 82 x 30 | |||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943 Approved | |||||||||||||||
| EMC Standards | EN55022, GB9254 Class B, EN55014, EN61000-3-2,-3, EN61000-4-2,-3,4,5,6,8,11, EN61000-6-2 (EN50082-2), Heavy Industry level, Criteria A | |||||||||||||||
