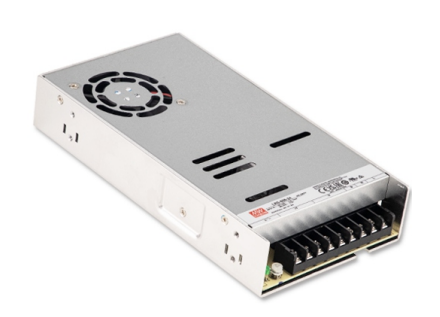

LRS-600 Series
Enclosed Power Supplies 500–600W
LRS-600 Series Main Features:
1U low profile
Forced air cooling
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
LRS-600-5 / LRS-600-12
LRS-600-15 / LRS-600-24
LRS-600-27 / LRS-600-36
LRS-600-48
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for
5 seconds
AC input range selectable by switch
Built-in cooling Fan ON-OFF control
Operating altitude up to 5000 meter
High operating temperature up to 65℃
Withstand 5G vibration test
3 years warranty
Quote Request
| LRS-600-5 | LRS-600-12 | LRS-600-15 | LRS-600-24 | LRS-600-27 | LRS-600-36 | LRS-600-48 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 500 | 600 | 600 | 600 | 599.4 | 597.6 | 600 | |||||||||
| Input Voltage | 90-264VAC 255-370VDC | 90-264VAC 255-370VDC | 90-264VAC 255-370VDC | 90-264VAC 255-370VDC | 90-264VAC 255-370VDC | 90-264VAC 255-370VDC | 90-264VAC 255-370VDC | |||||||||
| Output Current | 100A | 50A | 40A | 25A | 22.2A | 16.6A | 12.5A | |||||||||
| Output Voltage | 5 | 12 | 15 | 24 | 27 | 36 | 48 | |||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | |||||||||
| DC Output Adjustment | 4.75-5.5V | 11.4-13.2V | 14.25-16.5V | 22.8-26.4V | 25.65-29.7V | 34.2-39.6V | 45.6-52.8V | |||||||||
| Dimensions | 225x 124x 41 | 225x 124x 41 | 225x 124x 41 | 225x 124x 41 | 225x 124x 41 | 225x 124x 41 | 225x 124x 41 | |||||||||
| Working Temperature | -20-+65℃ | |||||||||||||||
| Satety Standards | BS IEC/UL 62368-1, EAC TP TC 004, KC62368-1(except for 5V), BIS IS13252(Part1):2010/IEC60950-1: 2005(NOTE 13),BSMI CNS15598-1,GB 4943.1,BS EN/EN61558-1,BS EN/EN61558-2-16 approved, Designed by AS/NZS 61558.1/2.16, AS/NZS 62368.1 | |||||||||||||||
| EMC Standards | Compliance to EAC TP TC 020, BSMI CNS15936,KC KSC 9832, KSC 9835 | |||||||||||||||
