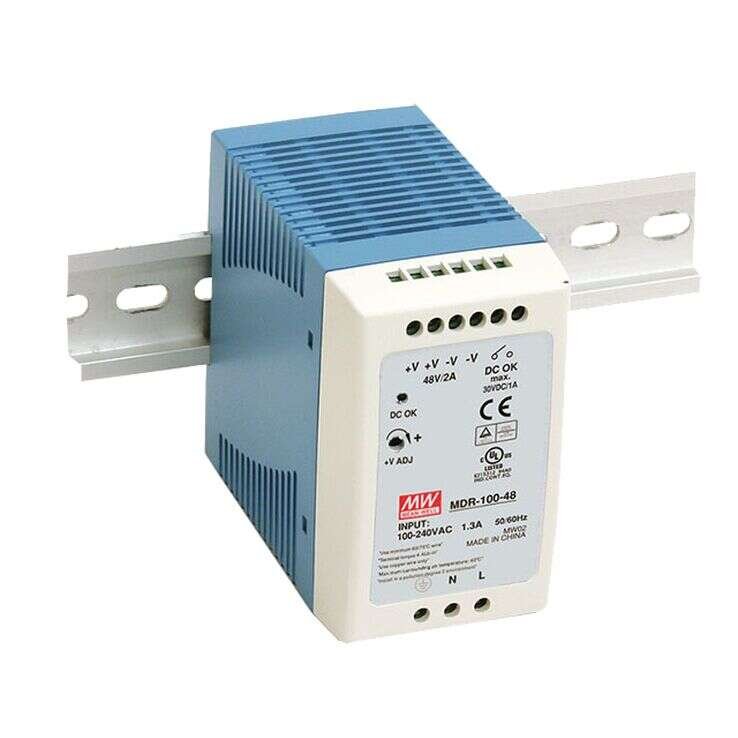

MDR-100 Series
DIN Rail Power Supplies 90–96W
MDR-100 Series Main Features:
No load power consumption <1W
Built-in active PFC
Protections: Short circuit / Overload/ Over voltage/ / Over temperature
Models:
Manufacturer:
Type:
Other features:
MDR-100-12 / MDR-100-24
MDR-100-48
MEAN WELL
DIN Rail Power Supplies
Universal AC input / full range
Installed on DIN rail TS35 / 7.5 or 15
LED indicator for power on
DC OK relay contact
Cooling by free air convection
100% full load burn-in test
3 years warranty
Quote Request
| MDR-100-12 | MDR-100-24 | MDR-100-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 90 | 96 | 96 | |||||||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | |||||||||||||
| Output Current | 0~0.84A | 0~4.0A | 0~2.0A | |||||||||||||
| Output Voltage | 12 | 24 | 48 | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 12~15V | 24~30V | 48~56V | |||||||||||||
| Dimensions | 55x90x100 | 55x90x100 | 55x90x100 | |||||||||||||
| Working Temperature | 0~+65°C | |||||||||||||||
| Satety Standards | UL508, TUV EN60950-1, approved | |||||||||||||||
| EMC Standards | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level | |||||||||||||||
