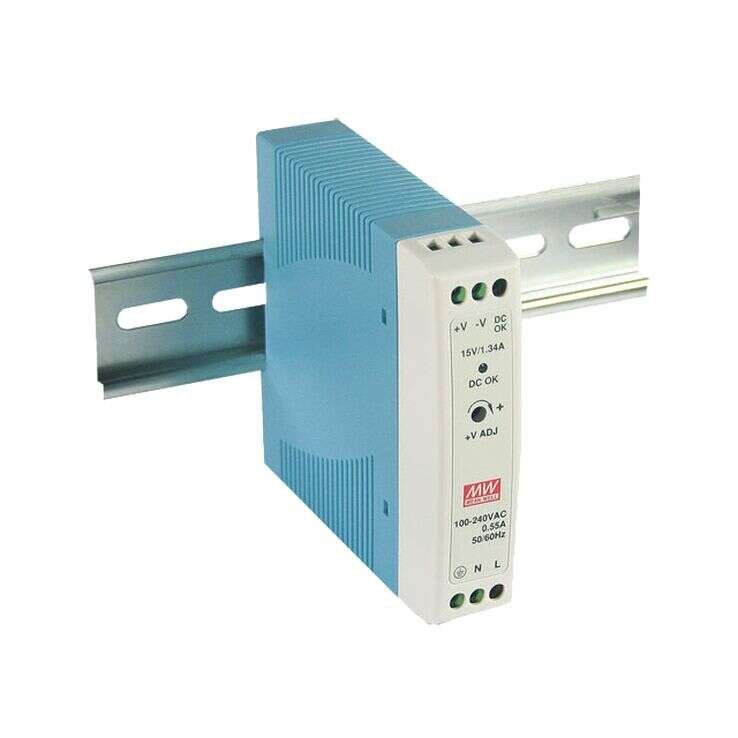

MDR-20 Series
DIN Rail Power Supplies 15–24W
MDR-20 Series Main Features:
No load power consumption <0.75W
Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
MDR-20-5 / MDR-20-12
MDR-20-15 / MDR-20-24
MEAN WELL
DIN Rail Power Supplies
Universal AC input / full range
LED indicator for power on
NEC class 2 / LPS complaint
DC OK signal output
Cooling by free air convection
100% full load burn-in test
3 years warranty
Quote Request
| MDR-20-5 | MDR-20-12 | MDR-20-15 | MDR-20-24 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 15 | 20 | 20 | 24 | ||||||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||||||
| Output Current | 0~3.0A | 0~1.67A | 0~1.34A | 0~1.00A | ||||||||||||
| Output Voltage | 5 | 12 | 15 | 24 | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 4.75~5.5V | 10.8-13.2V | 13.5-16.5V | 21.6~26.4V | ||||||||||||
| Dimensions | 22.5x90x100 | 22.5x90x100 | 22.5x90x100 | 22.5x90x100 | ||||||||||||
| Working Temperature | 0~+65°C | |||||||||||||||
| Satety Standards | UL508, TUV EN60950-1, approved, NEC class 2 compliant | |||||||||||||||
| EMC Standards | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 | |||||||||||||||
