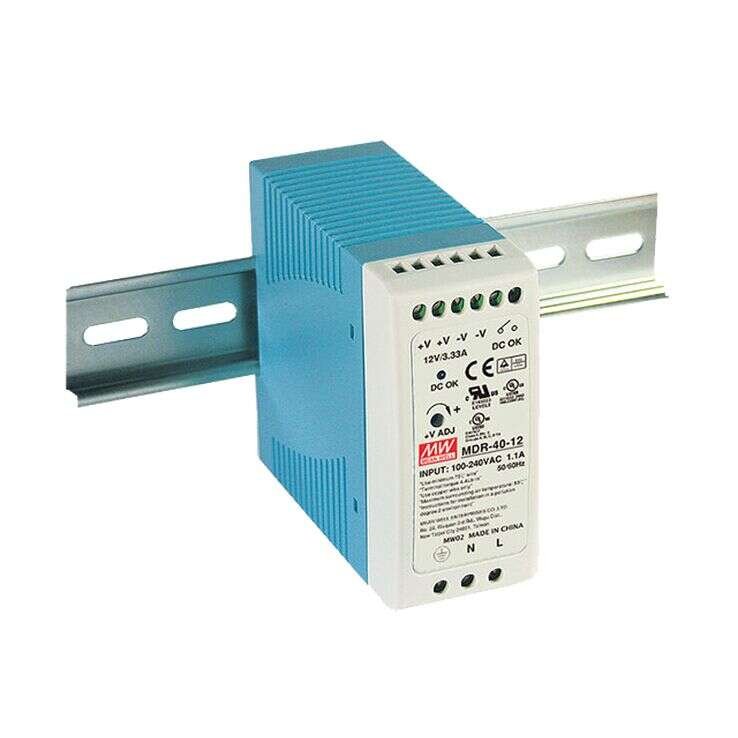

MDR-40 Series
DIN Rail Power Supplies 30–41W
MDR-40 Series Main Features:
No load power consumption <0.75W
Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
MDR-40-5 / MDR-40-12
MDR-40-24 / MDR-40-48
MEAN WELL
DIN Rail Power Supplies
Universal AC input / full range
LED indicator for power on
DC OK relay contact
Cooling by free air convection
100% full load burn-in test
3 years warranty
Quote Request
| MDR-40-5 | MDR-40-12 | MDR-40-24 | MDR-40-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 30 | 40 | 41 | 40 | ||||||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||||||
| Output Current | 0~6.0A | 0~3.33A | 0~1.7A | 0~0.83A | ||||||||||||
| Output Voltage | 5 | 12 | 24 | 48 | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 5~6V | 12~15V | 24~30V | 48~56V | ||||||||||||
| Dimensions | 40x90x100 | 40x90x100 | 40x90x100 | 40x90x100 | ||||||||||||
| Working Temperature | 0~+65°C | |||||||||||||||
| Satety Standards | UL508, TUV EN60950-1, approved; UL508, TUV EN60950-1, approved, NEC class 2 compliant | |||||||||||||||
| EMC Standards | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level | |||||||||||||||
