Home / AC-DC Open Frame Type / MFM-10

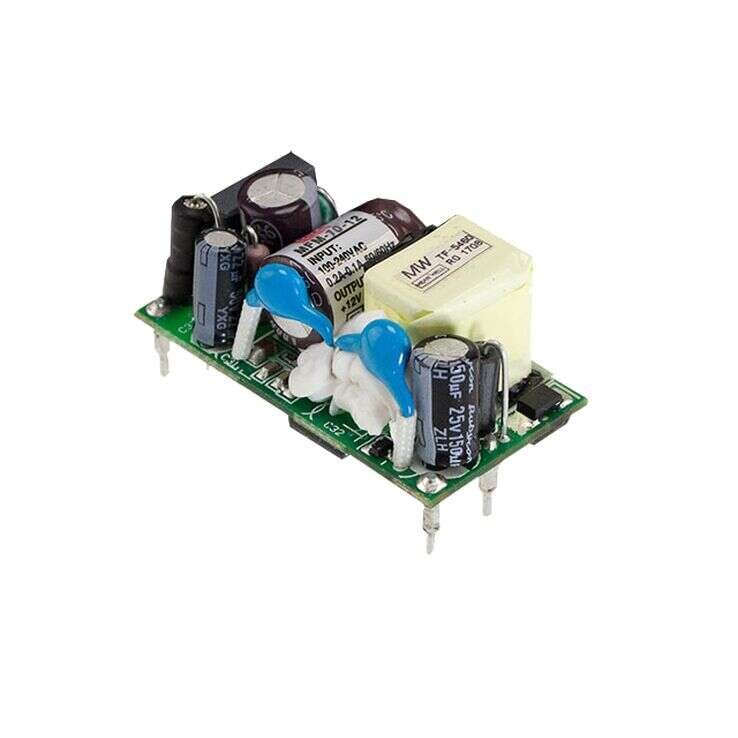

MFM-10 Series
Open Frame Power Supplies 8.3–10.2W
MFM-10 Series Main Features:
Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
No load power consumption <0.075W
Models:
Manufacturer:
Type:
Other features:
MPM-05-3.3 / MPM-05-5
MPM-05-12 / MPM-05-15
MPM-05-24
MEAN WELL
Open Frame Power Supplies
Wide operating temp range -30~+85°C
1.65bx0.88b compact size
Protections: Short circuit / Overload /
Over voltage/ Over Temperature
Suitable for BF application with
appropriate system consideration
Extremely low leakage current
EMI class B for class II configuration
3 years warranty
Quote Request
| MFM-10-3.3 | MFM-10-5 | MFM-10-12 | MFM-10-15 | MFM-10-24 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 8.3 | 10 | 10.2 | 10 | 10 | |||||||||||
| Input Voltage | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | |||||||||||
| Output Current | 2.5A | 2A | 0.85A | 0.67A | 0.42A | |||||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 42x22.3x20.5 | 42x22.3x20.5 | 42x22.3x20.5 | 42x22.3x20.5 | 42x22.3x20.5 | |||||||||||
| Working Temperature | -30-+85°C | |||||||||||||||
| Satety Standards | IEC60601-1, EN60601-1, ULANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to EN60335-1 | |||||||||||||||
| EMC Standards | EN55011, EN61000-3-2,3, EN55024, EN60601-1-2, EN61204-3 EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
