MFM-15 Series
Open Frame Power Supplies 11.6–15.1W
MPM-05 Series Main Features:

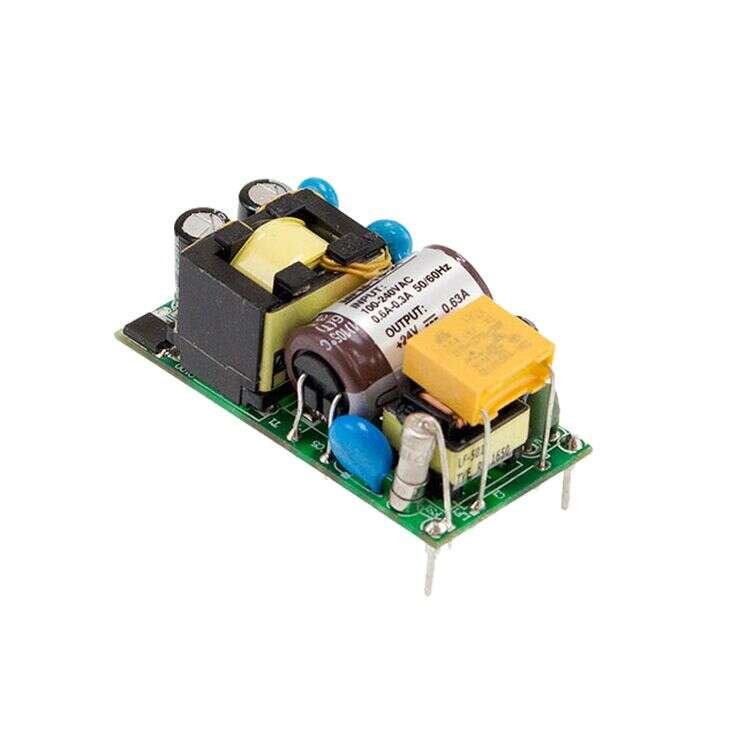

MFM-15 is a 15W high density and small size (49*23.8*23mm) AC/DC on board type medical power supply series
Models:
Manufacturer:
Type:
Other features:
MFM-15-3.3 / MFM-15-5
MFM-15-12 / MFM-15-15
MFM-15-24
MEAN WELL
Open Frame Power Supplies
1.93"x0.94" compact size
No load power consumption <0.1W
Wide operating temp.range -35~+85°C
Protections: short circuit/overload/
over voltage/over temperature
Suitable for BF application with
appropriate system consideration
Extremely low leakage current
EMI class B for class II configuration
3 years warranty
Quote Request
| MFM-15-3.3 | MFM-15-5 | MFM-15-12 | MFM-15-15 | MFM-15-24 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 11.6 | 15 | 15 | 15 | 15.1 | |||||||||||
| Input Voltage | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | |||||||||||
| Output Current | 3.5A | 3A | 1.25A | 1A | 0.63A | |||||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 49x23.8x23 | 49x23.8x23 | 49x23.8x23 | 49x23.8x23 | 49x23.8x23 | |||||||||||
| Working Temperature | -35~+85°C | |||||||||||||||
| Satety Standards | IEC60601-1, EN60601-1, IEC60335-1, EN60335-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved | |||||||||||||||
