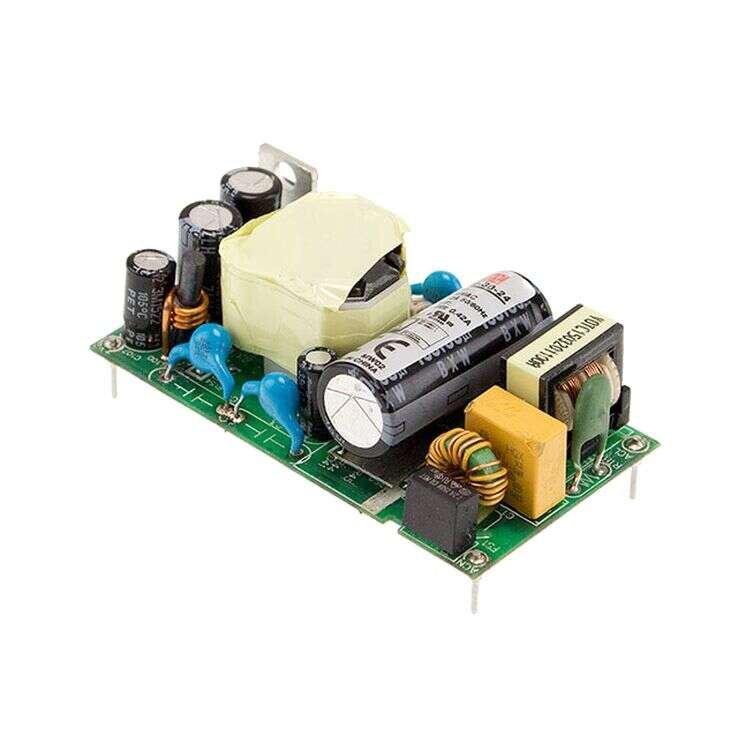

MFM-30 Series
Open Frame Power Supplies 19.8–31.2W
MFM-30 Series Main Features:
Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
No load power consumption <0.075W
Models:
Manufacturer:
Type:
Other features:
MFM-30-3.3 / MFM-30-5
MFM-30-12 / MFM-30-15
MFM-30-24 / MFM-30-48
MEAN WELL
Open Frame Power Supplies
Wide operating temp range -40~+85°C
Protections: Short circuit / Overload /
Over voltage
Suitable for BF application with
appropriate system consideration
2.58bx1.38b compact size
Extremely low leakage current
EMI class B for class II configuration
No minimum load required
3 years warranty
Quote Request
| MFM-30-3.3 | MFM-30-5 | MFM-30-12 | MFM-30-15 | MFM-30-24 | MFM-30-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 19.8 | 30 | 30 | 30 | 31.2 | 30.2 | ||||||||||
| Input Voltage | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | ||||||||||
| Output Current | 7.8A | 6.9A | 2.9A | 2.3A | 1.5A | 0.73A | ||||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | 48V | ||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | ||||||||||
| Dimensions | 65x35x23 | 65x35x23 | 65x35x23 | 65x35x23 | 65x35x23 | |||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | IEC60601-1, EN60601-1, ULANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to EN60335-1 | |||||||||||||||
| EMC Standards | EN55011, EN61000-3-2,3, EN60601-1-2, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
