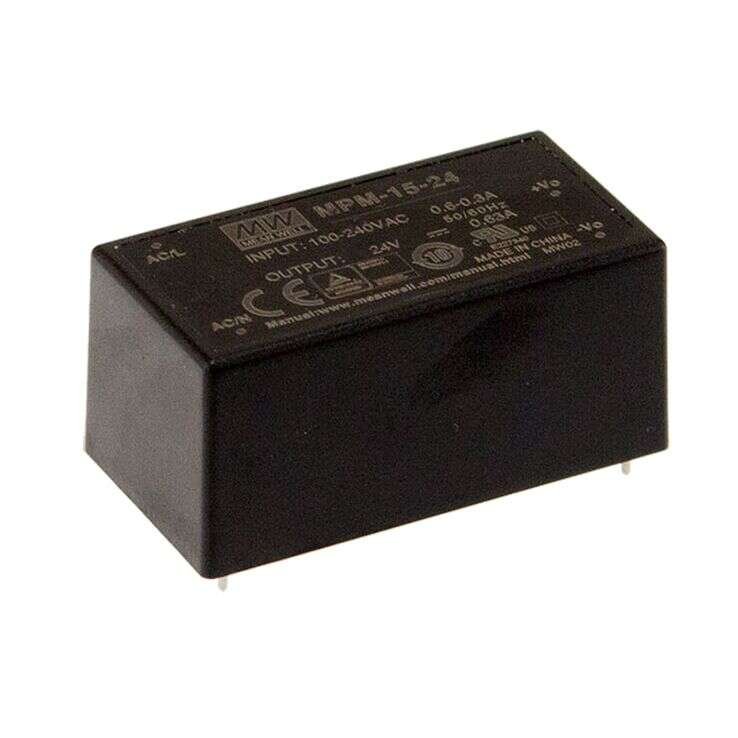

MPM-15 Series
Open Frame Power Supplies 11.6–15.1W
MPM-15 Series Main Features:
MPM-15 is a 15W high density and small size (52.4*27.2*24mm) AC/DC module type medical power supply series offered in pin type
Models:
Manufacturer:
Type:
Other features:
MPM-15-3.3 / MPM-15-5
MPM-15-12 / MPM-15-15
MPM-15-24
MEAN WELL
Open Frame Power Supplies
Wide operating temp range -40~+85°C
2.06"x1.07" compact size
Suitable for BF application with
appropriate system consideration
No load power consumption <0.1W
Protections: short circuit/ overload/
over voltage/ over temperature
Extremely low leakage current
EMI class B for class II configuration
3 years warranty
Quote Request
| MPM-15-3.3 | MPM-15-5 | MPM-15-12 | MPM-15-15 | MPM-15-24 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 11.6 | 15 | 15 | 15 | 15.1 | |||||||||||
| Input Voltage | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | |||||||||||
| Output Current | 3.5A | 3A | 1.25A | 1A | 0.63A | |||||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 52.4x27.2x24 | 52.4x27.2x24 | 52.4x27.2x24 | 52.4x27.2x24 | 52.4x27.2x24 | |||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005/A2:2021, CAN/CSA C22.2 No. 60601-1:2014+A2,IEC 60335-1:2010/AMD2:2016, Dekra BS EN/ EN 60335-1:2012+A11+A13+A1+A14+A2+A15 ,EAC TP TC 004 approved | |||||||||||||||
