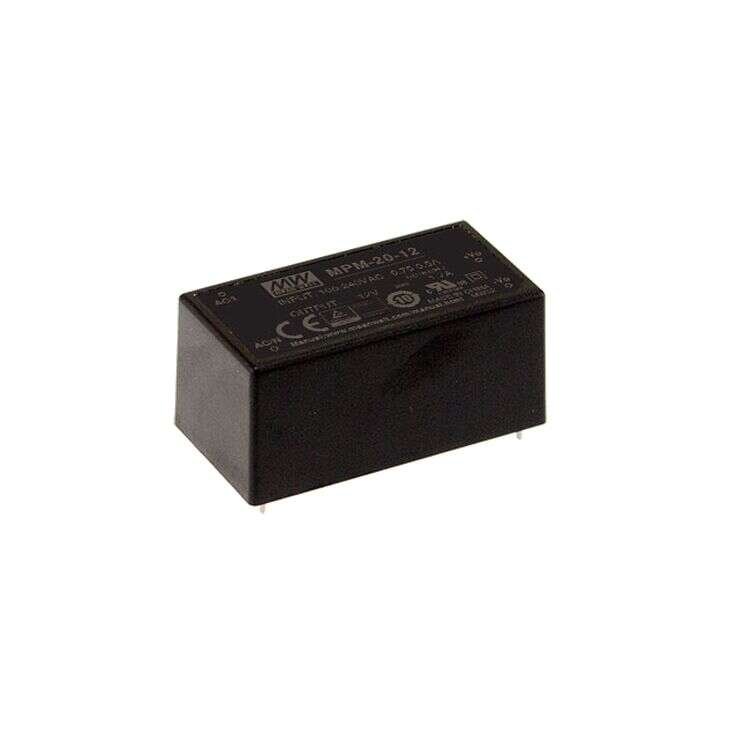

MPM-20 Series
Open Frame Power Supplies 14.9–21.6W
MPM-20 Series Main Features:
MPM-20 is a 20W high density and small size (52.4*27.2*24mm) AC/DC module type medical power supply series offered in pin type
Models:
Manufacturer:
Type:
Other features:
MPM-20-3.3 / MPM-20-5
MPM-20-12 / MPM-20-15
MPM-20-24
MEAN WELL
Open Frame Power Supplies
Wide operating temp. range -35~+85°C
2.06"x1.07" compact size
No load power consumption <0.1W
Suitable for BF application with
appropriate system consideration
Extremely low leakage current
EMI class B for class II configuration
No minimum load required
3 years warranty
Quote Request
| MPM-20-3.3 | MPM-20-5 | MPM-20-12 | MPM-20-15 | MPM-20-24 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 14.9 | 20 | 21.6 | 21 | 21.6 | |||||||||||
| Input Voltage | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | |||||||||||
| Output Current | 4.5A | 4A | 1.8A | 1.4A | 0.9A | |||||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 52.4x27.2x24 | 52.4x27.2x24 | 52.4x27.2x24 | 52.4x27.2x24 | 52.4x27.2x24 | |||||||||||
| Working Temperature | -35-+85°C | |||||||||||||||
| Satety Standards | IEC60601-1, EN60601-1, IEC60335-1, EN60335-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd edition approved | |||||||||||||||
