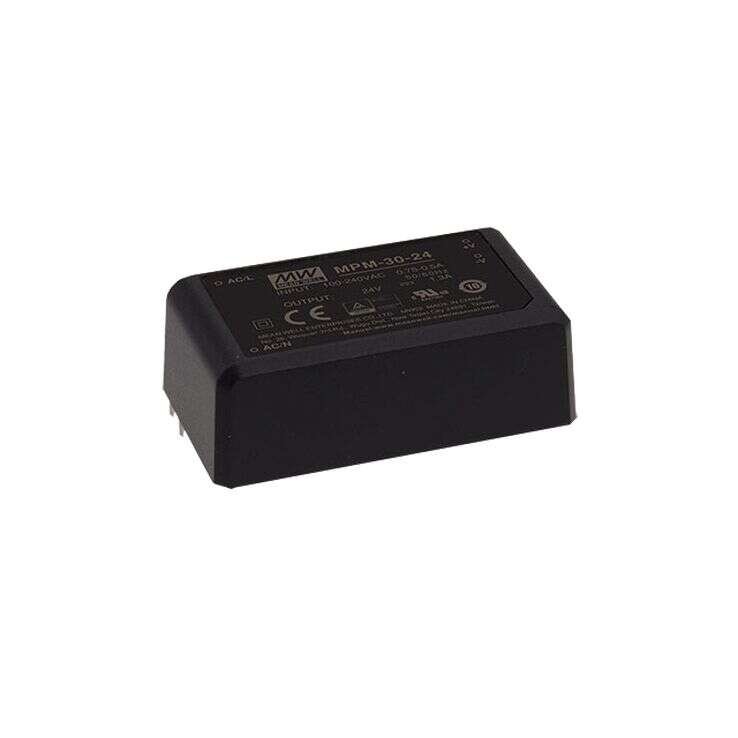

MPM-30 Series

Open Frame Power Supplies 19.8–31.2W

MPM-30

MPM-30 Series Main Features:

Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1

No load power consumption <0.075W

Models:

Manufacturer:

Type:

Other features:

MPM-30-3.3ST / MPM-30-5ST
MPM-30-12ST / MPM-30-15ST
MPM-30-24ST / MPM-30-48ST
MPM-30-3.3 / MPM-30-5
MPM-30-12 / MPM-30-15
MPM-30-24 / MPM-30-48

MEAN WELL

Open Frame Power Supplies

Wide operating temp range -40~+85°C

Protections: Short circuit / Overload /
Over voltage

Suitable for BF application with
appropriate system consideration

Extremely low leakage current

EMI class B for class II configuration

2.73bx1.53b compact size

3 years warranty

Quote Request

    MPM-30-3.3STMPM-30-5STMPM-30-12STMPM-30-15STMPM-30-24STMPM-30-48STMPM-30-3.3MPM-30-5MPM-30-12MPM-30-15MPM-30-24MPM-30-48
    Wattage19.830303031.230.219.830303031.230.2
    Input Voltage80-264VAC80-264VAC80-264VAC80-264VAC80-264VAC80-264VAC80-264VAC80-264VAC80-264VAC80-264VAC80-264VAC80-264VAC
    Output Current7.8A6.9A2.9A2.3A1.5A0.73A7.8A6.9A2.9A2.3A1.5A0.73A
    Output Voltage3.3V5V12V15V24V48V3.3V5V12V15V24V48V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingle
    Dimensions91x39.5x28.591x39.5x28.591x39.5x28.591x39.5x28.591x39.5x28.5
    Working Temperature-40-+85°C
    Satety StandardsIEC60601-1, EN60601-1, ULANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to EN60335-1
    EMC StandardsEN55011, EN61000-3-2,3, EN60601-1-2, EN61000-4-2,3,4,5,6,8,11
