MPM-65 Series

Open Frame Power Supplies 50–65.3W

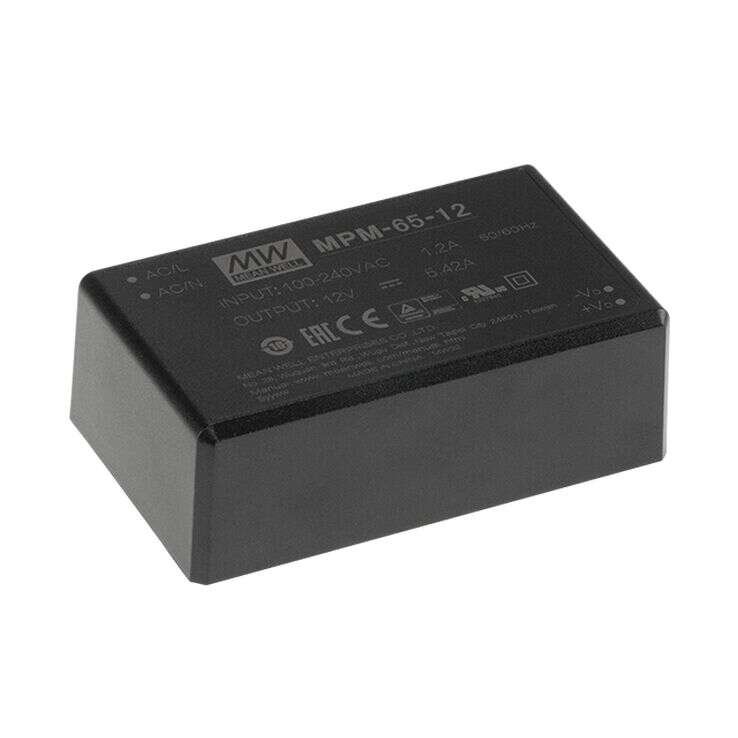

MPM-65

MPM-65 Series Main Features:

3.43" x 2.05" compact size

PCB chassis or screw terminal mounting version

Models:

Manufacturer:

Type:

Other features:

MPM-65-5 / MPM-65-12
MPM-65-15 / MPM-65-24
MPM-65-48

MEAN WELL

Open Frame Power Supplies

Wide operating temp. rage -30~80°C

Protections: Short circuit / Overload /
Over voltage

No load power consumption<0.1W

Suitable for BF application with
appropriate system consideration

Extremely low leakage current

EMI Class B without additional components

3 years warranty

Quote Request

    MPM-65-5MPM-65-12MPM-65-15MPM-65-24MPM-65-48
    Wattage5065656565.3
    Input Voltage80-264VAC, 113-370VDC80-264VAC, 113-370VDC80-264VAC, 113-370VDC80-264VAC, 113-370VDC80-264VAC, 113-370VDC
    Output Current10A5.42A4.33A2.71A1.36A
    Output Voltage5V12V15V24V48V
    Output Voltage OptionsSingleSingleSingleSingleSingle
    DimensionsPCB: 87x52x29.5, Screw terminal: 109x52x33.5PCB: 87x52x29.5, Screw terminal: 109x52x33.5PCB: 87x52x29.5, Screw terminal: 109x52x33.5PCB: 87x52x29.5, Screw terminal: 109x52x33.5PCB: 87x52x29.5, Screw terminal: 109x52x33.5
    Working Temperature-30-+80°C
    Satety StandardsIEC60601-1, EN60601-1,UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; EAC TP TC 004,Design refer to EN60335-1(by request), Primary-Secondary: 2xMOPP, I/P-O/P:4KVAC, I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
    EMC StandardsEN55011 (CISPR11), EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
