Home / AC-DC Open Frame Type / MPM-90

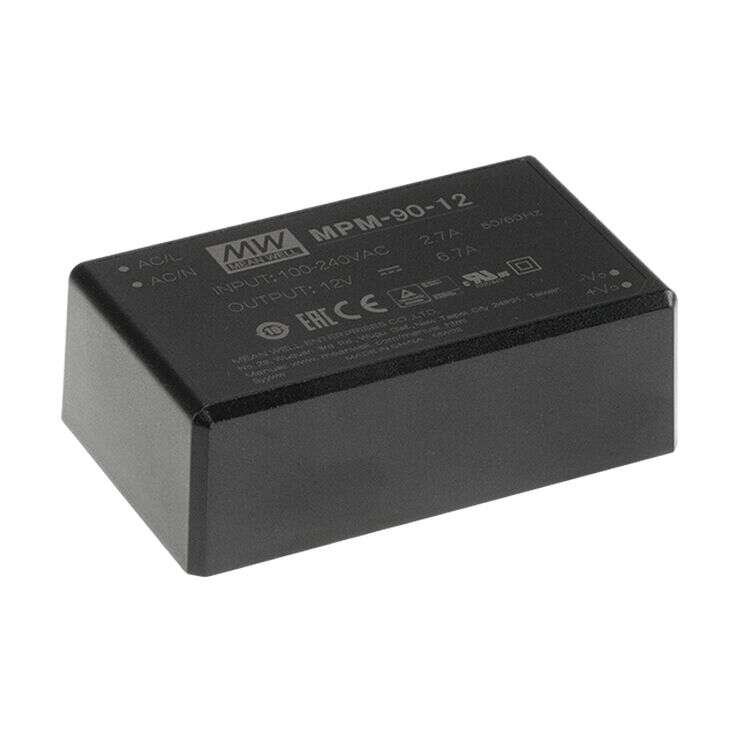

MPM-90 Series
Open Frame Power Supplies 90W
MPM-90 Series Main Features:
3.43" x 2.05" compact size
PCB chassis or screw terminal mounting version
Models:
Manufacturer:
Type:
Other features:
MPM-90-12 / MPM-90-15
MPM-90-24 / MPM-90-48
MEAN WELL
Open Frame Power Supplies
Wide operating temp. rage -30~80°C
No load power consumption<0.1W
Protections: Short circuit / Overload /
Over voltage
Extremely low leakage current
EMI Class B without additional components
Isolation Class II
3 years warranty
Quote Request
| MPM-90-12 | MPM-90-15 | MPM-90-24 | MPM-90-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 90 | 90 | 90 | 90 | ||||||||||||
| Input Voltage | 80-264VAC, 113-370VDC | 80-264VAC, 113-370VDC | 80-264VAC, 113-370VDC | 80-264VAC, 113-370VDC | ||||||||||||
| Output Current | 6.7A | 5.67A | 4.13A | 2.07A | ||||||||||||
| Output Voltage | 12V | 15V | 24V | 48V | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| Dimensions | PCB: 87x52x29.5 Screw terminal: 109x52x33.5 | PCB: 87x52x29.5 Screw terminal: 109x52x33.5 | PCB: 87x52x29.5 Screw terminal: 109x52x33.5 | PCB: 87x52x29.5 Screw terminal: 109x52x33.5 | ||||||||||||
| Working Temperature | -30-+80°C | |||||||||||||||
| Satety Standards | IEC60601-1, EN60601-1,UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; EAC TP TC 004,Design refer to EN60335-1(by request), Primary-Secondary: 2xMOPP, I/P-O/P:4KVAC, I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |||||||||||||||
| EMC Standards | EN55011 (CISPR11), EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
