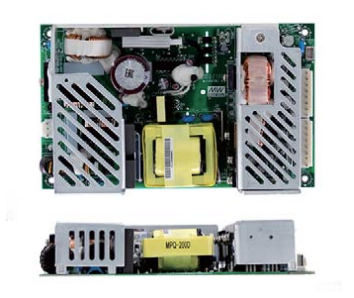

MPQ-200 Series
1~4 Output Medical Type
MPQ-200 Series Main Features:
No load power consumption <0.1W
Free air convection for 140W
Protections: Short circuit / Overload / Over voltage / Over temperature
Models:
Manufacturer:
Type:
Other features:
MPQ-200B / MPQ-200C
MPQ-200D / MPQ-200F
MEAN WELL
Open Frame Power Supplies
Universal AC Input / Full range
Medical safety approved
Low leakage current <150uA
With power good and fail signal output
Built-in remote ON-OFF control
Built-in remote sense function
Fixed switching frequency at 100KHz
3 years warranty
Quote Request
| MPQ-200B | MPQ-200C | MPQ-200D | MPQ-200F | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC INPUT VOLTAGE | 90~264 VAC, 47~63Hz / 127~370VDC | 90~264 VAC, 47~63Hz / 127~370VDC | 90~264 VAC, 47~63Hz / 127~370VDC | 90~264 VAC, 47~63Hz / 127~370VDC | ||||||||||||
| Output Current | 15A, 7A, 2A, 2A | 15A, 5A, 2A, 2A | 15A, 3A, 2A, 2A | 15A, 2.7A, 2A, 2A | ||||||||||||
| Output Voltage | 5V, 12V, -5V, -12V | 5V, 15V, -5V, -15V | 5V, 24V, 12V, -12V | 5V, 24V, 15V, -15V | ||||||||||||
| Working Temperature | -20~+70°C | |||||||||||||||
| Satety Standards | IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2 ANSI/AAMI ES60601-1:2005+A2,CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved | |||||||||||||||
