MSP-100 Series

Medical Grade Power Supplies 66–100W

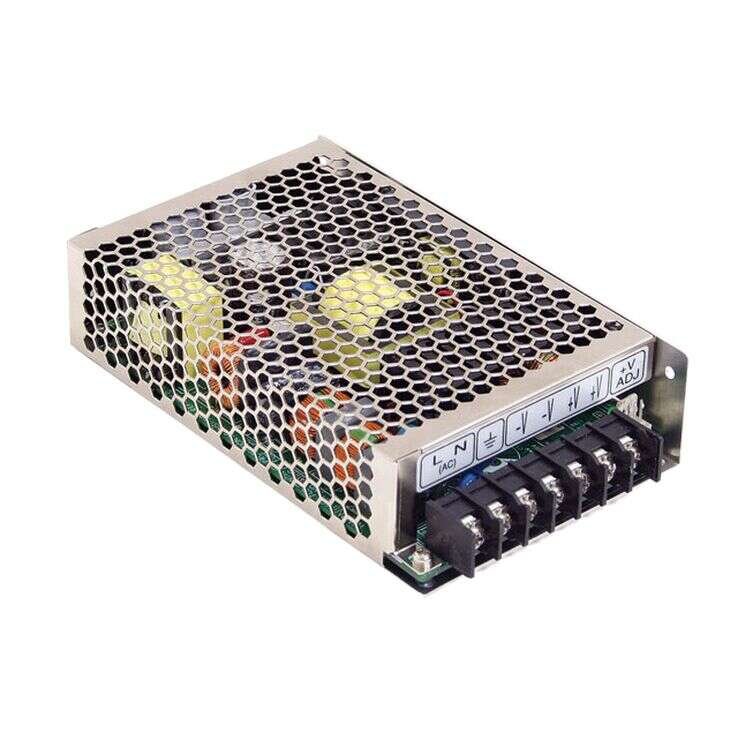

MSP-100

MSP-100 Series Main Features:

No load power consumption<0.5W

Built-in active PFC function

Protections: Short circuit / Overload/ Over voltage/ Over Temperature

Models:

Manufacturer:

Type:

Other features:

MSP-100-3.3 / MSP-100-5
MSP-100-7.5 / MSP-100-12
MSP-100-15 / MSP-100-24
MSP-100-36 / MSP-100-48

MEAN WELL

Enclosed Power Supplies

Withstand 300VAC surge input for 5 seconds

Universal AC input / Full range

High efficiency up to 90%

Cooling by free air convection

1U low profile 38mm

Medical safety approved (MOOP level)

Built-in remote ON-OFF control

All using 105°C long life electrolytic capacitors

5 years warranty

Quote Request

    MSP-100-3.3MSP-100-5MSP-100-7.5MSP-100-12MSP-100-15MSP-100-24MSP-100-36MSP-100-48
    Wattage668566100100100100100
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current0~20A0~17A0~13.5A0~8.5A0~20A0~4.5A0~2.9A0~2.2A
    Output Voltage3.357.51215243648
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment3.1~3.8V4.75~5.8V7.1~9V11.4~13.8V14.25~18V22.8~28.8V34.2~39.6V45.6~55.2V
    Dimensions159x 97x 38159x 97x 38159x 97x 38159x 97x 38159x 97x 38159x 97x 38159x 97x 38159x 97x 38
    Working Temperature-40-+60°C
    Satety StandardsANSI/AAMI ES60601-1, IEC60601-1 approved
    EMC StandardsCompliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
