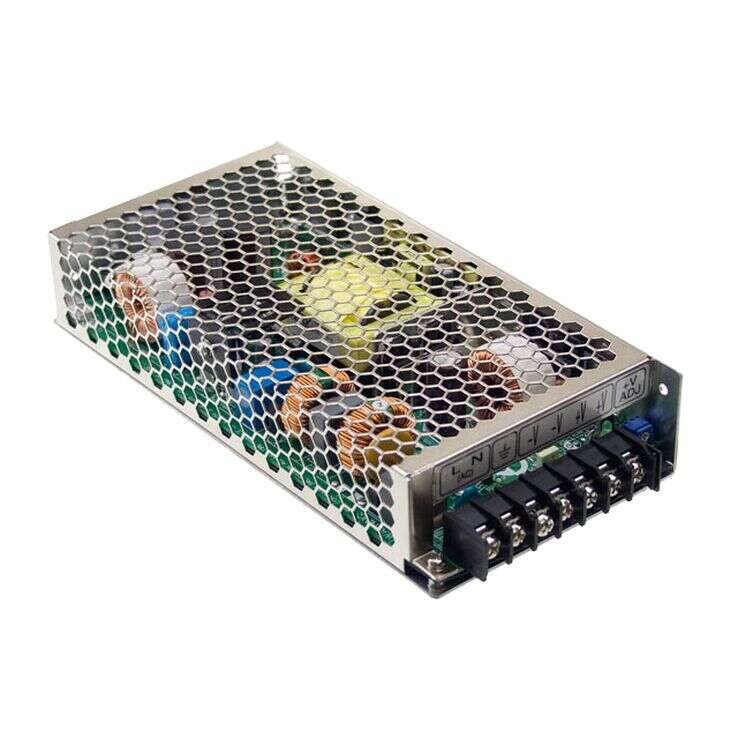

MSP-200 Series

Medical Grade Power Supplies 138–200W

MSP-200

MSP-200 Series Main Features:

No load power consumption<0.5W

Built-in active PFC function, PF>0.95

Protections: Short circuit / Overload/ Over voltage/ Over Temperature

Models:

Manufacturer:

Type:

Other features:

MSP-100-3.3 / MSP-100-5
MSP-100-7.5 / MSP-100-12
MSP-100-15 / MSP-100-24
MSP-100-36 / MSP-100-48

MEAN WELL

Enclosed Power Supplies

Withstand 300VAC surge input for 5 seconds

Universal AC input / Full range

High efficiency up to 89%

Cooling by free air convection

1U low profile 38mm

Built-in remote sense function

Built-in remote ON-OFF control

Built-in constant current limiting circuit

5 years warranty

Quote Request

    MSP-200-3.3MSP-200-5MSP-200-7.5MSP-200-12MSP-200-15MSP-200-24MSP-200-36MSP-200-48
    Wattage138180200200200200200200
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current0~40A0~35A0~26.7A0~16.7A0~13.4A0~8.4A0~5.7A0~4.3A
    Output Voltage3.33.37.51215243648
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment2.8~3.8V4.3~5.8V6.8~9V10.2~13.8V13.5~18V21.6~28.8V28.8~39.6V40.8~55.2V
    Dimensions199x 98x 38199x 98x 38199x 98x 38199x 98x 38199x 98x 38199x 98x 38199x 98x 38199x 98x 38
    Working Temperature-40-+60°C
    Satety StandardsANSI/AAMI ES60601-1, IEC60601-1 approved
    EMC StandardsCompliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
