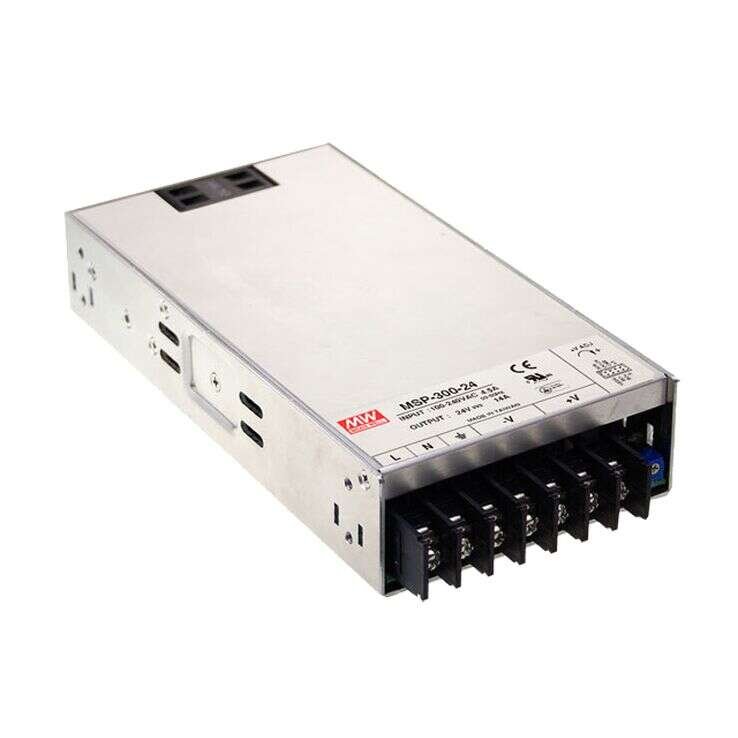

MSP-300 Series
Medical Grade Power Supplies 198–336W
MSP-300 Series Main Features:
No load power consumption<0.5W
Built-in active PFC function, PF>0.95
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
MSP-300-3.3 / MSP-300-5
MSP-300-7.5 / MSP-300-12
MSP-300-15 / MSP-300-24
MSP-300-36 / MSP-300-48
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for 5 seconds
Universal AC input / Full range
Medical safety approved (MOOP level)
High efficiency up to 89%
Built-in DC OK signal
1U low profile 41mm
Built-in constant current limiting circuit
Built-in remote ON-OFF control
Built-in remote sense function
5 years warranty
Quote Request
| MSP-300-3.3 | MSP-300-5 | MSP-300-7.5 | MSP-300-12 | MSP-300-15 | MSP-300-24 | MSP-300-36 | MSP-300-48 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 198 | 300 | 300 | 324 | 330 | 336 | 334 | 336 | ||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||
| Output Current | 0~60A | 0~60A | 0~40A | 0~27A | 0~22A | 0~14A | 0~9A | 0~7A | ||||||||
| Output Voltage | 3.3 | 5 | 7.5 | 12 | 15 | 24 | 36 | 48 | ||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC Output Adjustment | 2.8~3.8V | 4.3~5.8V | 6.8~9V | 10.2~13.8V | 13.5~18.0V | 21.6~28.8V | 28.8~39.6V | 40.8~55.2V | ||||||||
| Dimensions | 199x105x41 | 199x105x41 | 199x105x41 | 199x105x41 | 199x105x41 | 199x105x41 | 199x105x41 | 199x105x41 | ||||||||
| Working Temperature | -40~+70°C | |||||||||||||||
| Satety Standards | ANSI/AAMI ES60601-1, IEC60601-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2 | |||||||||||||||
