Home / AC-DC Enclosed Type / MSP-450

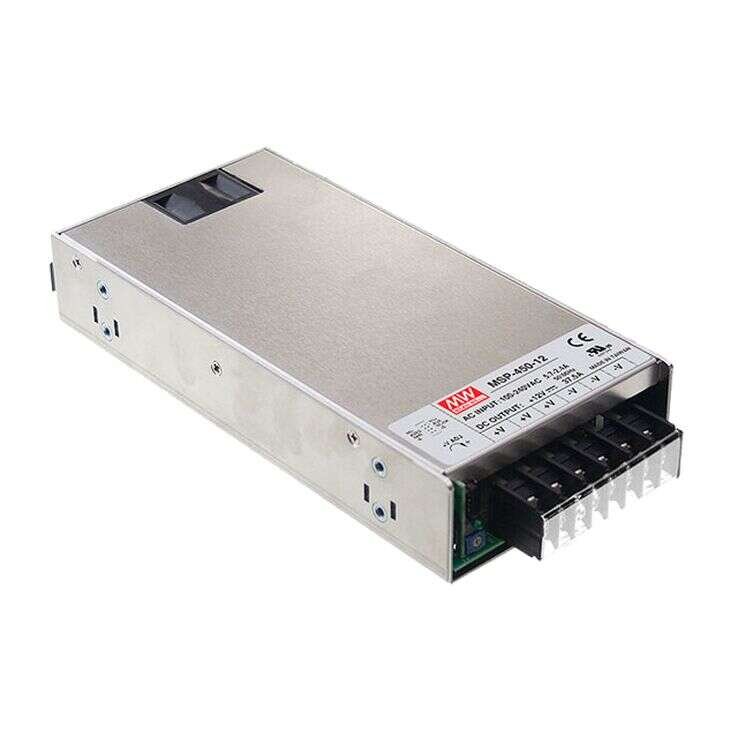

MSP-450 Series

Medical Grade Power Supplies 297–450W

MSP-450

MSP-450 Series Main Features:

Medical safety approved (MOOP level)

Built-in active PFC function PF>0.95

Protections: Short circuit / Overload/ Over voltage/ Over Temperature

Models:

Manufacturer:

Type:

Other features:

MSP-450-3.3 / MSP-450-5
MSP-450-7.5 / MSP-450-12
MSP-450-15 / MSP-450-24
MSP-450-36 / MSP-450-48

MEAN WELL

Enclosed Power Supplies

Withstand 300VAC surge

Universal AC input / Full range

High efficiency up to 89.5%

No load power consumption <0.5W

Built-in constant current limiting circuit

Built-in cooling Fan ON-OFF control

Built-in DC OK signal

Built-in remote sense function

5 years warranty

Quote Request

    MSP-450-3.3MSP-450-5MSP-450-7.5MSP-450-12MSP-450-15MSP-450-24MSP-450-36MSP-450-48
    Wattage297450450450450450450450
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current0~90A0~90A0~60A0~37.5A0~30A0~18.8A0~12.5A0~9.5A
    Output Voltage3.357.51215243648
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment2.8~3.8V4.3~5.8V6.8~9V10.2~13.8V13.5~18V21.6~28.8V28.8~39.6V40.8~55.2V
    Dimensions218x105x41218x105x41218x105x41218x105x41218x105x41218x105x41218x105x41218x105x41
    Working Temperature-20~+70°C
    Satety StandardsANSI/AAMI ES60601-1, IEC60601-1 approved
    EMC StandardsCompliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
