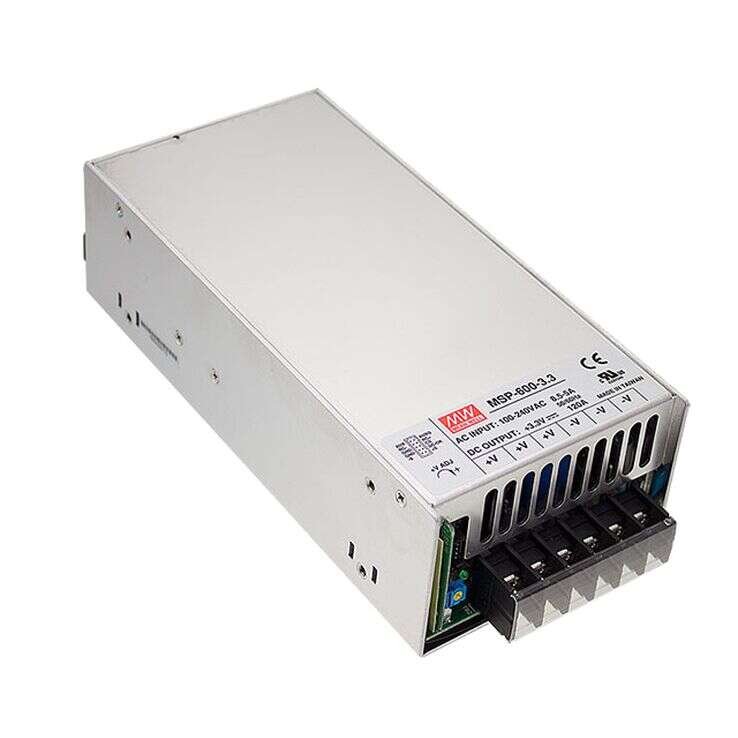

MSP-600 Series
Medical Grade Power Supplies 396–648W
MSP-600 Series Main Features:
Medical safety approved (MOOP level)
Universal AC input/ Full range
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
MSP-100-3.3 / MSP-100-5
MSP-100-7.5 / MSP-100-12
MSP-100-15 / MSP-100-24
MSP-100-36 / MSP-100-48
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function, PF>0.94
High efficiency up to 89%
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
5 years warranty
Quote Request
| MSP-600-3.3 | MSP-600-5 | MSP-600-7.5 | MSP-600-12 | MSP-600-15 | MSP-600-24 | MSP-600-36 | MSP-600-48 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 396 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | ||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||
| Output Current | 0~120A | 0~120A | 0~80A | 0~53A | 0~43A | 0~27A | 0~17.5A | 0~13A | ||||||||
| Output Voltage | 3.3 | 5 | 7.5 | 12 | 15 | 24 | 36 | 48 | ||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC Output Adjustment | 2.8~3.8V | 4.3~5.8V | 6.8~9V | 10.2~13.8V | 13.5~18V | 21.6~28.8V | 28.8~39.6V | 40.8~55.2V | ||||||||
| Dimensions | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | 218x105x63.5 | ||||||||
| Working Temperature | -20~+70°C | |||||||||||||||
| Satety Standards | ANSI/AAMI ES60601-1, IEC60601-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2 | |||||||||||||||
