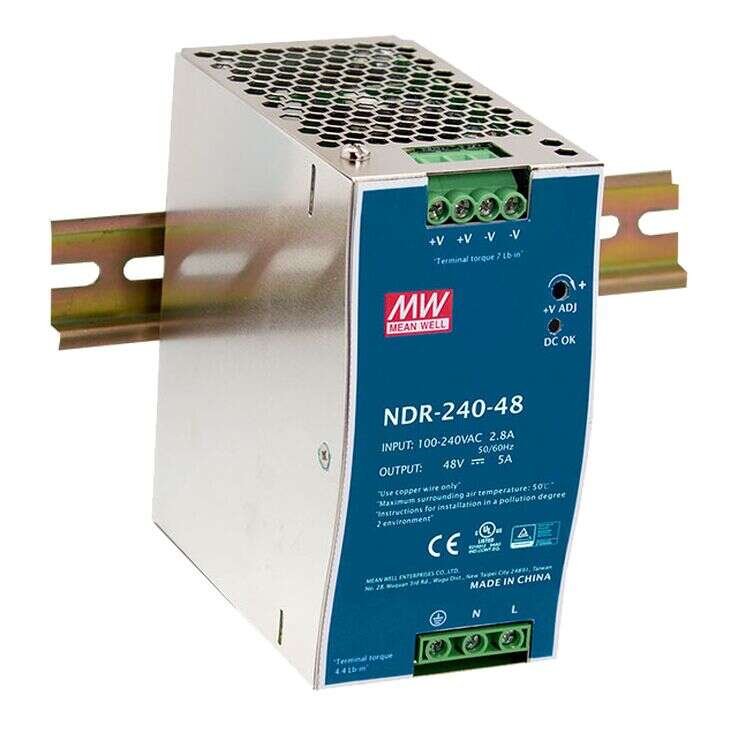

NDR-240 Series
DIN Rail Power Supplies 240W
NDR-240 Series Main Features:
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage / Over temperature
Models:
Manufacturer:
Type:
Other features:
NDR-240-24 / NDR-240-48
MEAN WELL
DIN Rail Power Supplies
Universal AC input / Full range
Built-in active PFC function
Can be instaled on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
EN61000-6-2 (EN500082-2) Industrial immunity level
100% full load burn-in test
3 years warranty
Quote Request
| NDR-240-24 | NDR-240-48 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 240 | 240 | ||||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | ||||||||||||||
| Output Current | 10A | 5A | ||||||||||||||
| Output Voltage | 24 | 48 | ||||||||||||||
| Output Voltage Option | Single | Single | ||||||||||||||
| DC Output Adjustment | 24-28V | 48-55V | ||||||||||||||
| Dimensions | 63x125.2x113.5 | 63x125.2x113.5 | ||||||||||||||
| Working Temperature | -20-+70°C | |||||||||||||||
| Satety Standards | UL508, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, Compliance to EN61000-4,-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy Industry level, criteria A | |||||||||||||||
